Individual hose record

4461525 Hose Repair Specifications

Excavator · Hitachi · ZX350F · Hydraulic Tank

Finished length2,600 mm

Locate this hose

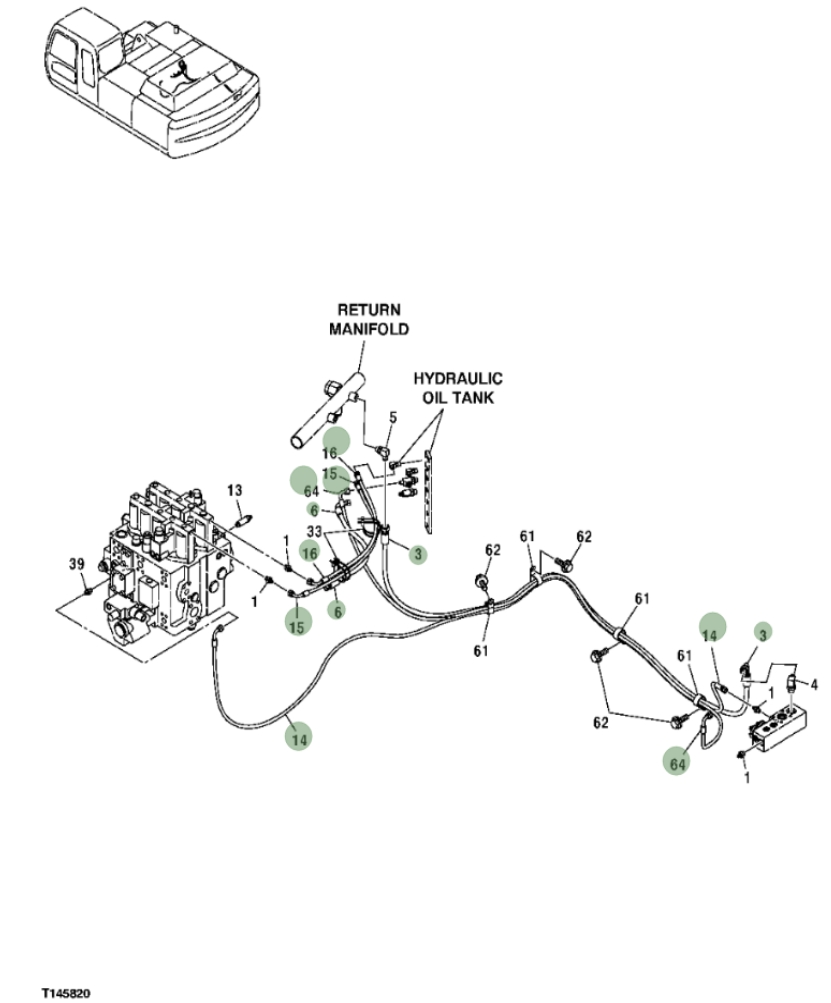

Installation diagram — Pipe No. 64

Locate Pipe No. 64 in the diagram, then confirm part number 4461525 before removing the hose.

Hitachi ZX350F installation diagram showing hydraulic hose 4461525 at Pipe No. 64 — Hitachi ZX350FPart 4461525 · Pipe No. 64Open full-size diagram

Repair specifications

Part number: 4461525
Diagram pipe number: 64
Installation route: 液压油箱~电磁阀(液压泵)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,600 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 19

4405562

Installation route: 液压油箱~电磁阀

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 64

4276003

Installation route: 液压油箱~电磁阀(液压泵)

Length: 2,000 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
