Individual hose record
4639635 Hose Repair Specifications
Excavator · Hitachi · ZX270LC-3 · Control Lever
Finished length2,150 mm
Locate this hose

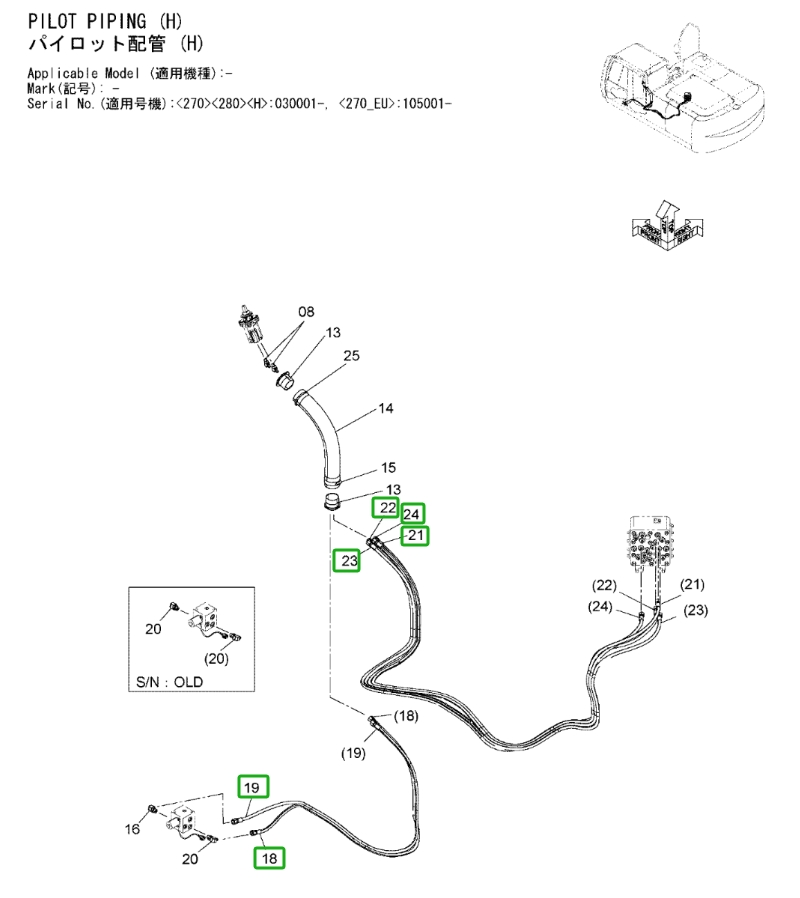

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4639635 before removing the hose.
Repair specifications
- Part number
- 4639635
- Diagram pipe number
- 19
- Installation route
- 右手柄~进回油阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,150 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
