- Length
- 380 mm
- Specification
- DN16;1SN-10;13.8MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
Individual hose record
73050200A051 Hose Repair Specifications
Excavator · Sunward · SWE500ES · Swing Motor
Finished length810 mm
Locate this hose

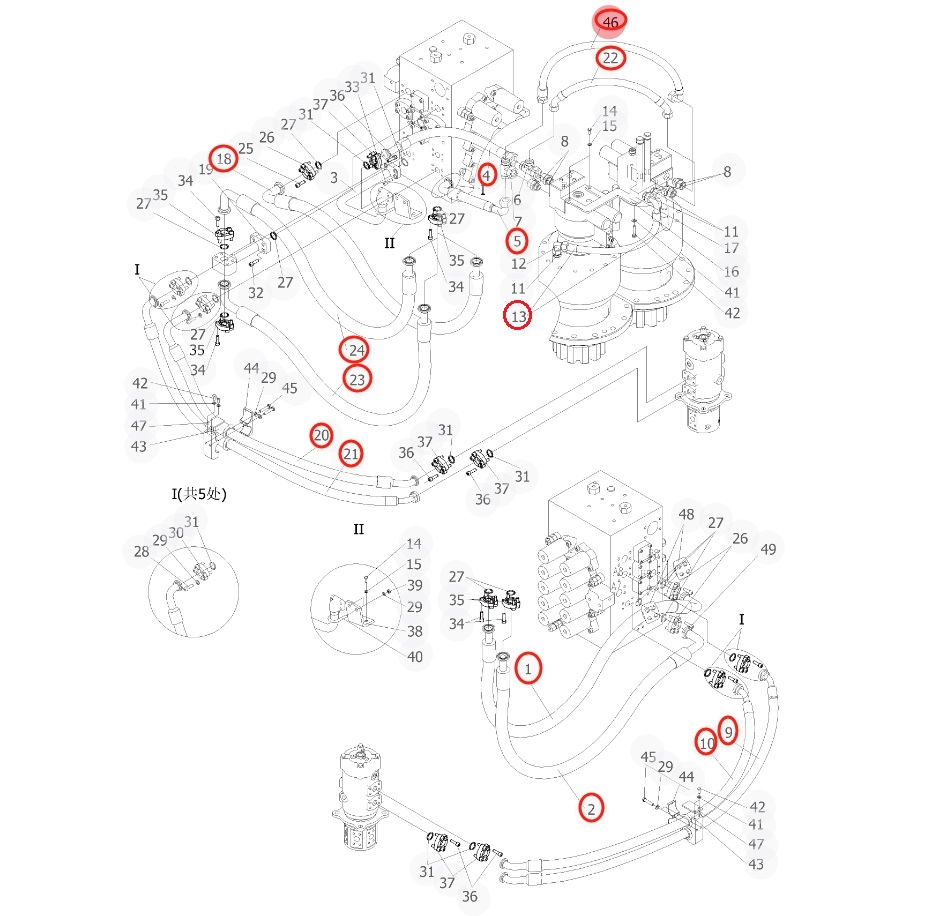

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 73050200A051 before removing the hose.
Repair specifications
- Part number
- 73050200A051
- Diagram pipe number
- 22
- Installation route
- 回转马达(左)~回转马达(右)
- Hose specification
- DN20;6SH-12;35MPa
- Finished length
- 810 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
Same system
Related Hoses
- Length
- 580 mm
- Specification
- DN20;1SN-12;12MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Length
- 740 mm
- Specification
- DN25;1SN-16;8.8MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Length
- 740 mm
- Specification
- DN25;1SN-16;8.8MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Length
- 970 mm
- Specification
- DN20;6SH-12;35MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Length
- 580 mm
- Specification
- DN20;1SN-12;12MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Length
- 310 mm
- Specification
- DN12;1SN-08;17.2MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
