Individual hose record
4360873 Hose Repair Specifications
Excavator · Hitachi · ZX250LC-5G · Hydraulic Tank
Finished length950 mm
Locate this hose

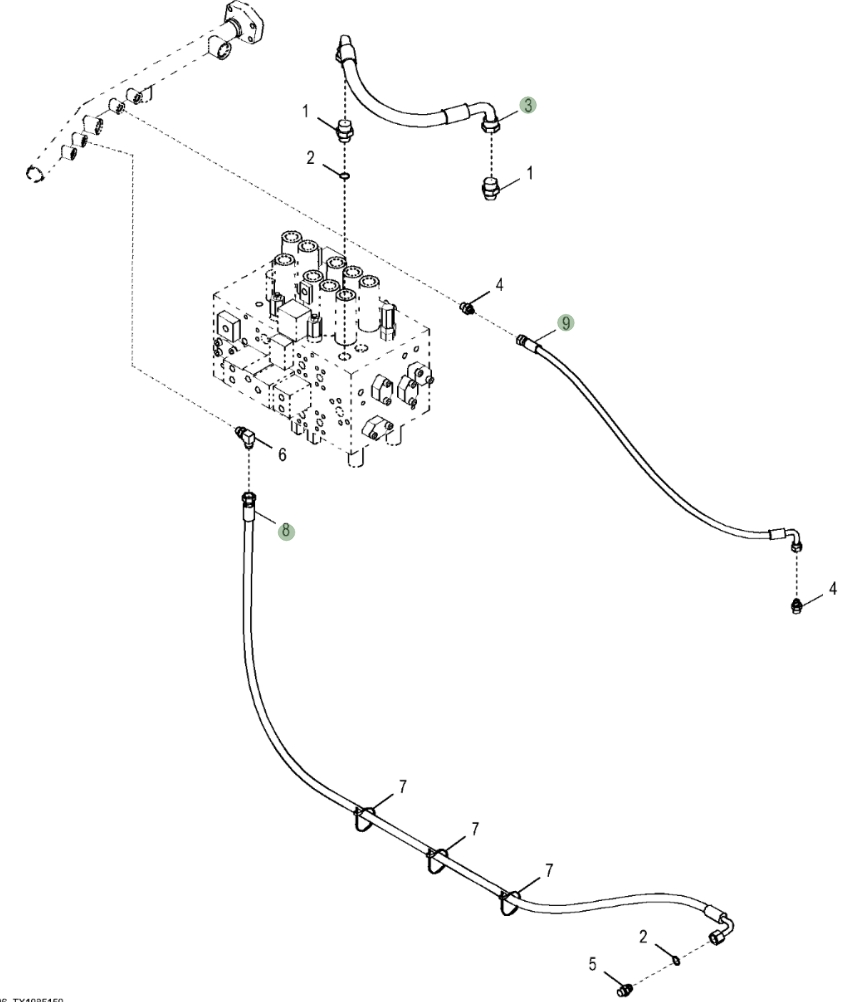

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4360873 before removing the hose.
Repair specifications
- Part number
- 4360873
- Diagram pipe number
- 9
- Installation route
- 回油铁管(液压油箱)~回转马达
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 950 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
