Individual hose record

730502001770 Hose Repair Specifications

Excavator · Sunward · SWE500E-3 · Control Lever

Finished length1,450 mm

Locate this hose

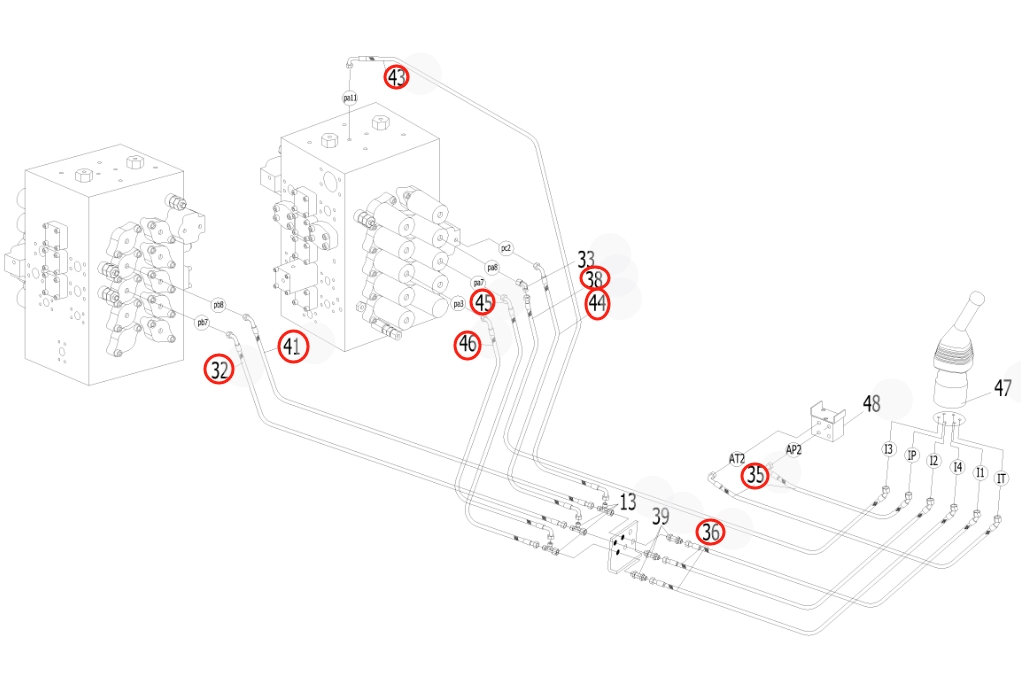

Installation diagram — Pipe No. 32

Locate Pipe No. 32 in the diagram, then confirm part number 730502001770 before removing the hose.

Sunward SWE500E-3 installation diagram showing hydraulic hose 730502001770 at Pipe No. 32 — Sunward SWE500E-3Part 730502001770 · Pipe No. 32Open full-size diagram

Repair specifications

Part number: 730502001770
Diagram pipe number: 32
Installation route: 右手柄I2~分配阀后PB7
Hose specification: DN8;1SN-05;22.5MPa
Finished length: 1,450 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
