Individual hose record

4366756 Hose Repair Specifications

Excavator · Hitachi · EX400LC-3 · Hydraulic Tank

Finished length465 mm

Locate this hose

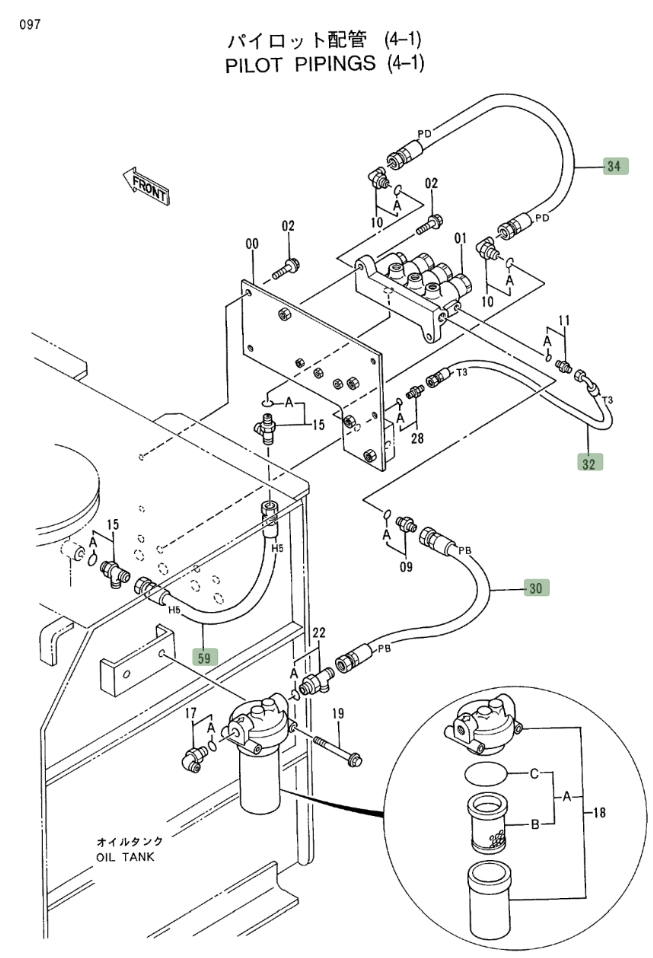

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number 4366756 before removing the hose.

Hitachi EX400LC-3 installation diagram showing hydraulic hose 4366756 at Pipe No. 34 — Hitachi EX400LC-3 · 4366756Part 4366756 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: 4366756
Diagram pipe number: 34
Installation route: 液压油箱~电磁阀
Hose specification: DN10;2SN-6;33MPa
Finished length: 465 mm
Working pressure: 33 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5

4366773

Installation route: 液压油箱~进回油阀

Length: 2,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 45

4327907

Installation route: 液压油箱~过渡阀块(回转马达)

Length: 2,700 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 36A

4365395

Installation route: 液压油箱~先导滤芯

Length: 1,250 mm
Specification: DN25;4层纤维-16;3.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 58

4366766

Installation route: 回油铁管(液压油箱)~中转接头(踏板)

Length: 900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
