Individual hose record
730502002990 Hose Repair Specifications
Excavator · Sunward · SWE470E-3 · Swing Motor
Finished length310 mm
Locate this hose

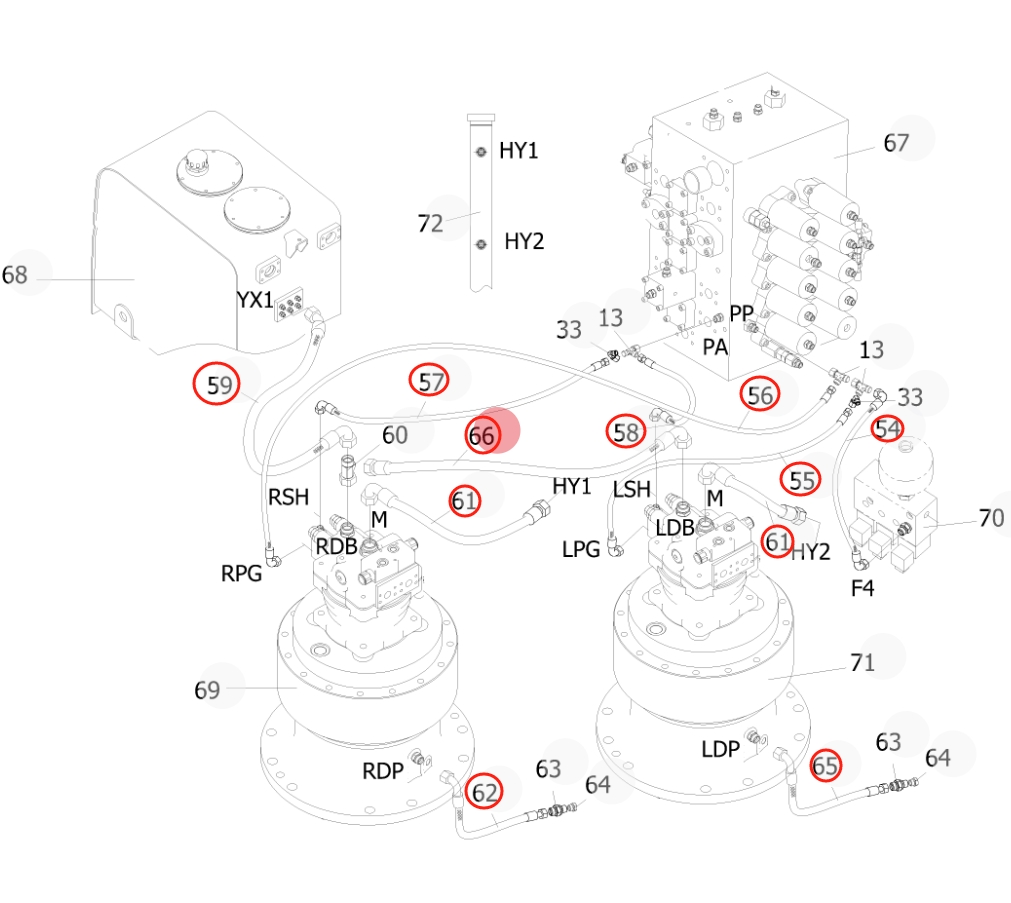

Installation diagram — Pipe No. 65
Locate Pipe No. 65 in the diagram, then confirm part number 730502002990 before removing the hose.
Repair specifications
- Part number
- 730502002990
- Diagram pipe number
- 65
- Installation route
- 回转马达(左)排油管
- Hose specification
- DN12;1SN-08;17.2MPa
- Finished length
- 310 mm
- Working pressure
- 17.2 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
