Individual hose record
DS2094051 Hose Repair Specifications
Excavator · Doosan · DX55 · Attachments
Finished length1,550 mm
Locate this hose

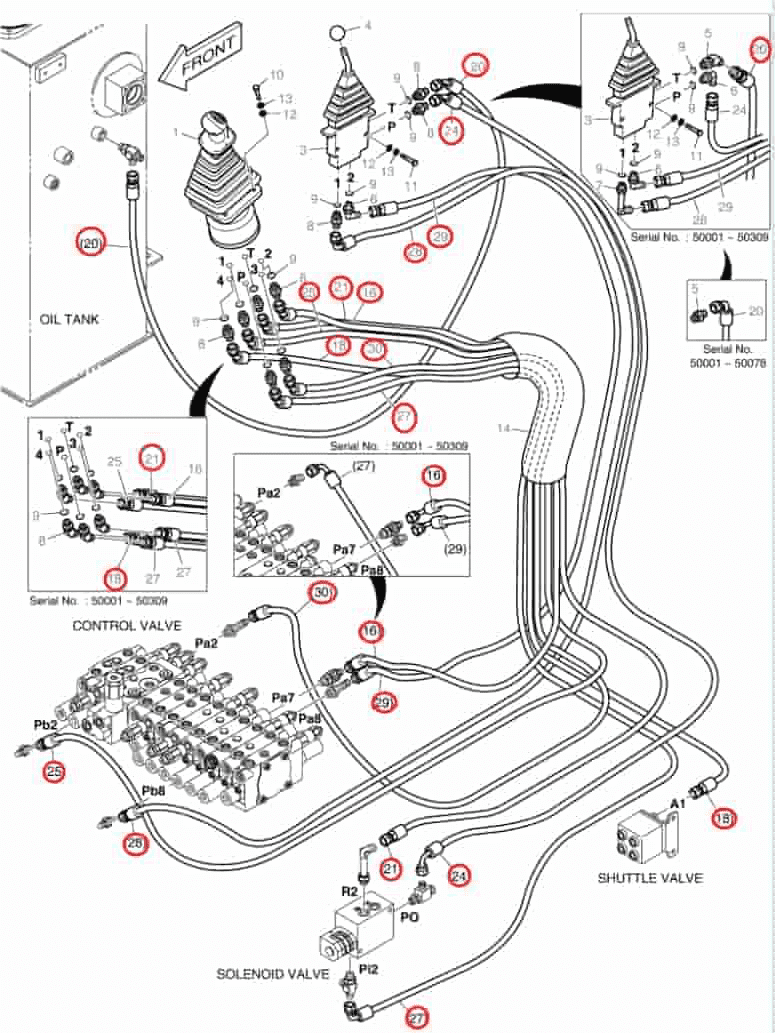

Installation diagram — Pipe No. 20
Locate Pipe No. 20 in the diagram, then confirm part number DS2094051 before removing the hose.
Repair specifications
- Part number
- DS2094051
- Diagram pipe number
- 20
- Installation route
- 推土铲手柄T口~液压油箱
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,550 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
