- Length
- 1,650 mm
- Specification
- DN5;1SN-03;25MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
Individual hose record
73050200A164 Hose Repair Specifications
Excavator · Sunward · SWE17F · Control Lever
Finished length1,650 mm
Locate this hose

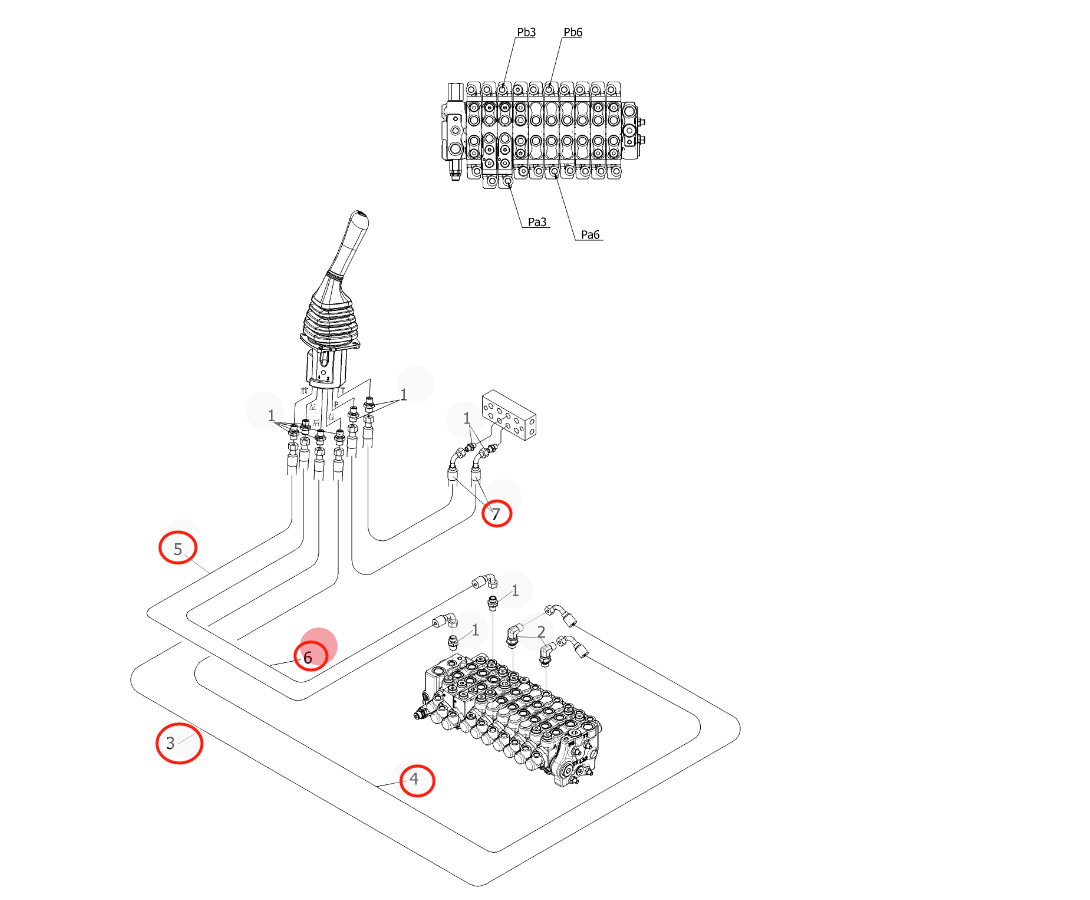

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 73050200A164 before removing the hose.
Repair specifications
- Part number
- 73050200A164
- Diagram pipe number
- 5
- Installation route
- 左手柄~分配阀PA3
- Hose specification
- DN5;1SN-03;25MPa
- Finished length
- 1,650 mm
- Working pressure
- 25 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 2
