Individual hose record
9289704 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Control Lever
Finished length2,600 mm
Locate this hose

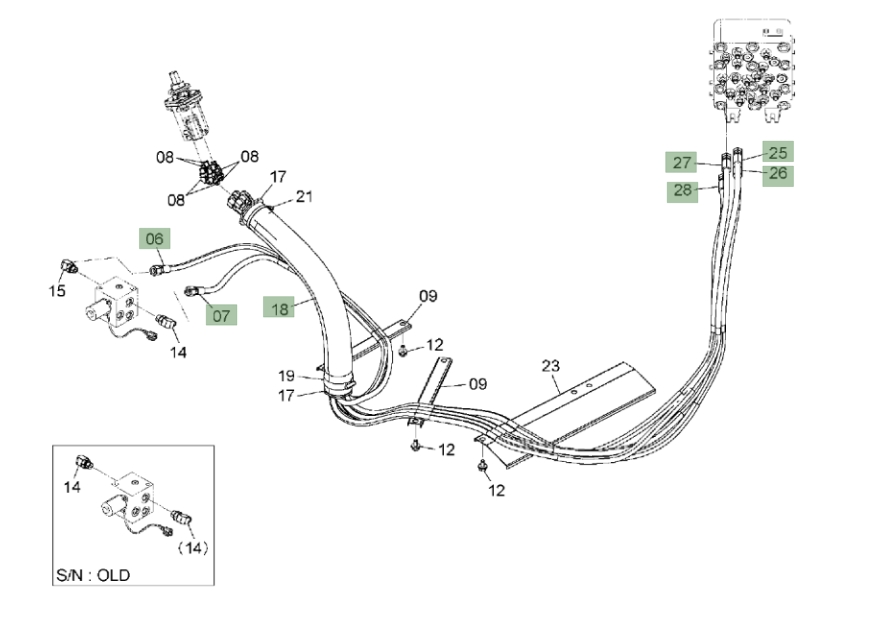

Installation diagram — Pipe No. 27
Locate Pipe No. 27 in the diagram, then confirm part number 9289704 before removing the hose.
Repair specifications
- Part number
- 9289704
- Diagram pipe number
- 27
- Installation route
- 左手柄~中转接头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,600 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
