Individual hose record

9235879 Hose Repair Specifications

Excavator · Hitachi · ZX180W · Hydraulic Tank

Finished length650 mm

Locate this hose

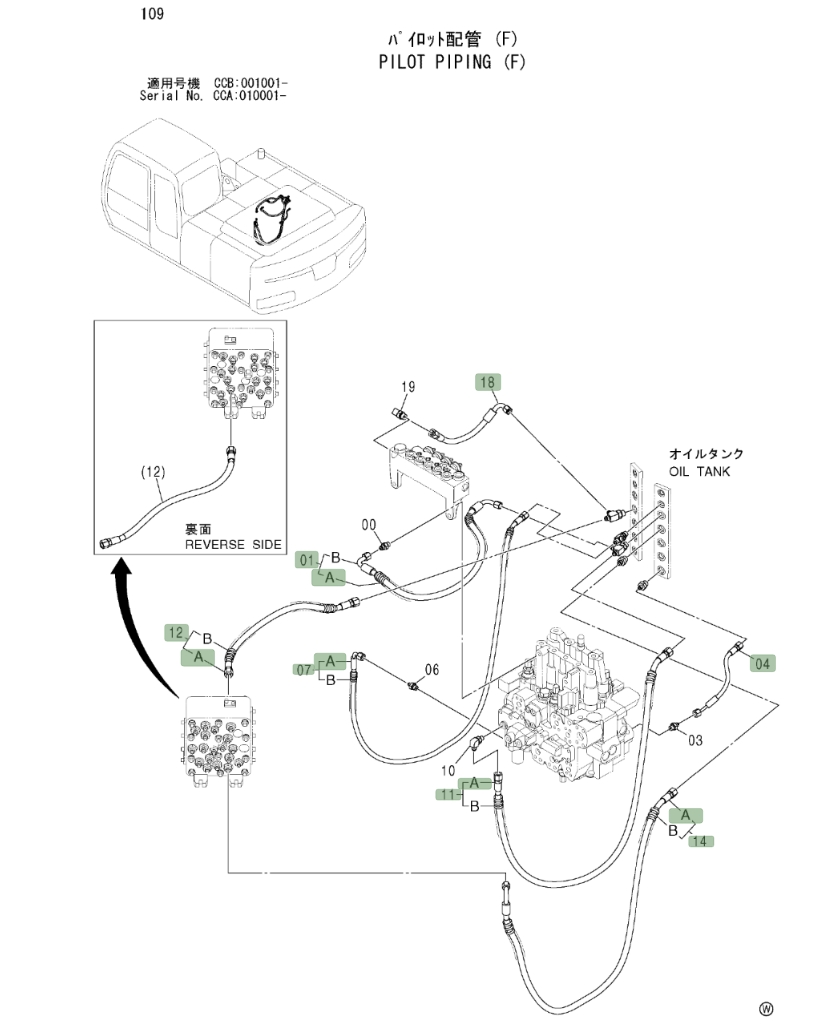

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 9235879 before removing the hose.

Hitachi ZX180W installation diagram showing hydraulic hose 9235879 at Pipe No. 12 — Hitachi ZX180W · 9235879Part 9235879 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 9235879
Diagram pipe number: 12
Installation route: 液压油箱~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 650 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 12A

4450428

Installation route: 液压油箱~中转接头

Length: 650 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 15

4420423

Installation route: 回油铁管(液压油箱)~蓄能器

Length: 500 mm
Specification: DN12;1SN-8;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
