Individual hose record

4213453 Hose Repair Specifications

Excavator · Hitachi · EX150 · Pedal

Finished length2,650 mm

Locate this hose

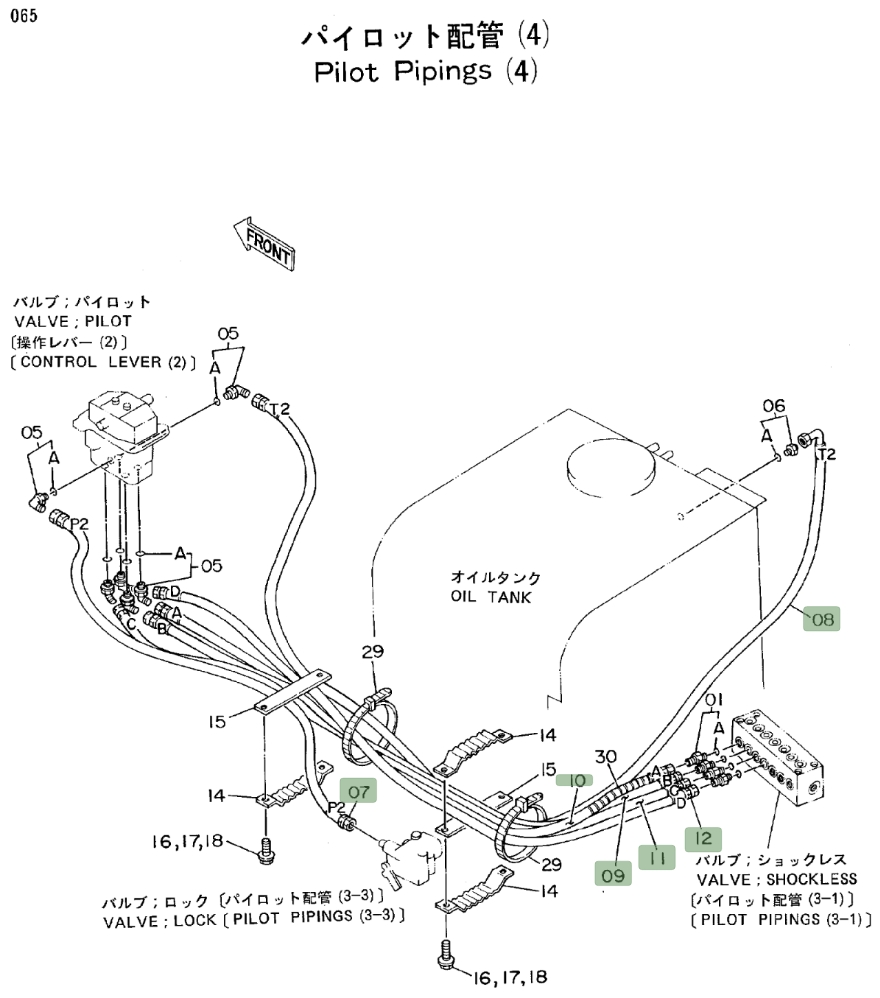

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4213453 before removing the hose.

Hitachi EX150 installation diagram showing hydraulic hose 4213453 at Pipe No. 8 — Hitachi EX150Part 4213453 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4213453
Diagram pipe number: 8
Installation route: 行走踏板~液压油箱
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 2,650 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
