Individual hose record

4187388 Hose Repair Specifications

Excavator · Hitachi · EX100 · Boom Assembly

Finished length1,200 mm

Locate this hose

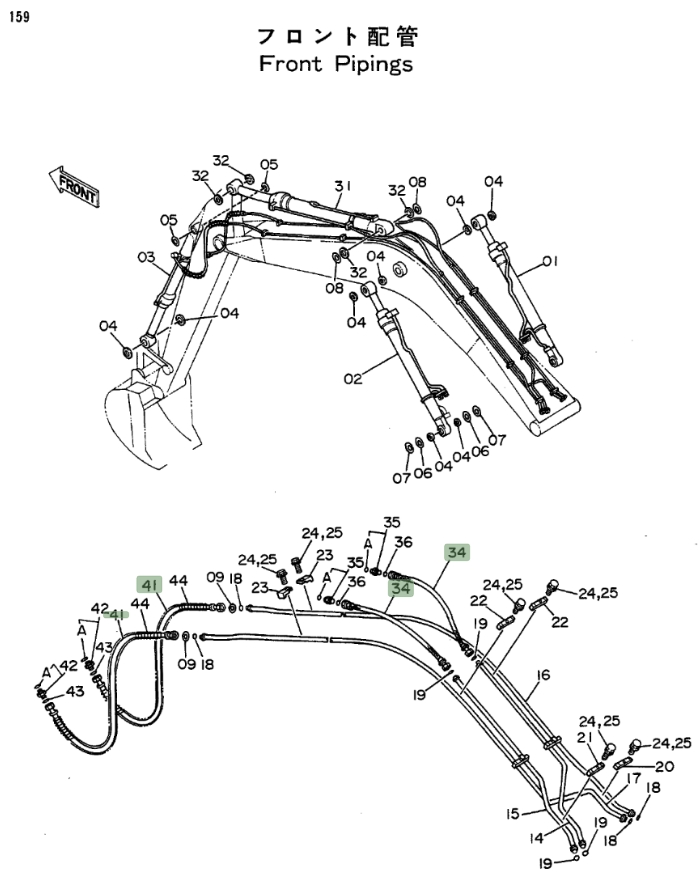

Installation diagram — Pipe No. 41

Locate Pipe No. 41 in the diagram, then confirm part number 4187388 before removing the hose.

Part number: 4187388
Diagram pipe number: 41
Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸
Hose specification: DN12;4SP-8;27.5MPa
Finished length: 1,200 mm
Working pressure: 27.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 4

Installation route: 铲斗油缸(前段)

Length: 950 mm
Specification: DN12;4SP-8;27.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 15

Installation route: 大臂油缸

Length: 750 mm
Specification: DN12;4SP-8;27.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 铲斗油缸(后段)

Length: 950 mm
Specification: DN12;4SP-8;27.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 34

Installation route: 小臂油缸

Length: 850 mm
Specification: DN19;4SP-12;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
