Individual hose record
4262266 Hose Repair Specifications
Excavator · Hitachi · EX100-2 · Swivel Joint
Finished length1,550 mm
Locate this hose

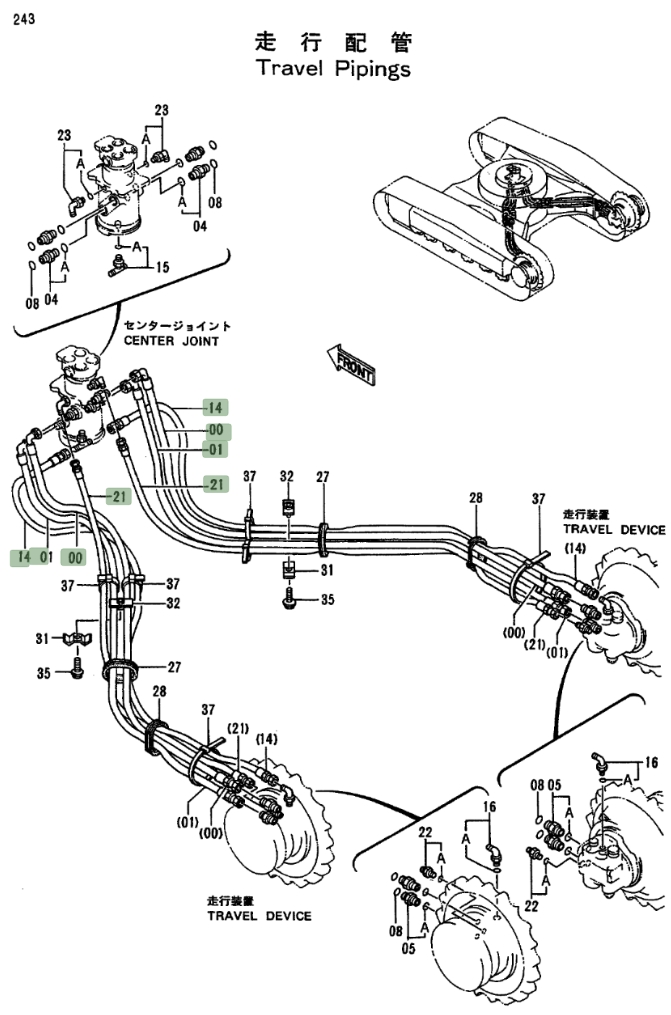

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4262266 before removing the hose.
Repair specifications
- Part number
- 4262266
- Diagram pipe number
- 0
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN16;4SP-10;27.5Mpa
- Finished length
- 1,550 mm
- Working pressure
- 27.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 2
