Individual hose record
4663676 Hose Repair Specifications
Excavator · Hitachi · ZX190W-3 · Hydraulic Pump
Finished length1,850 mm
Locate this hose

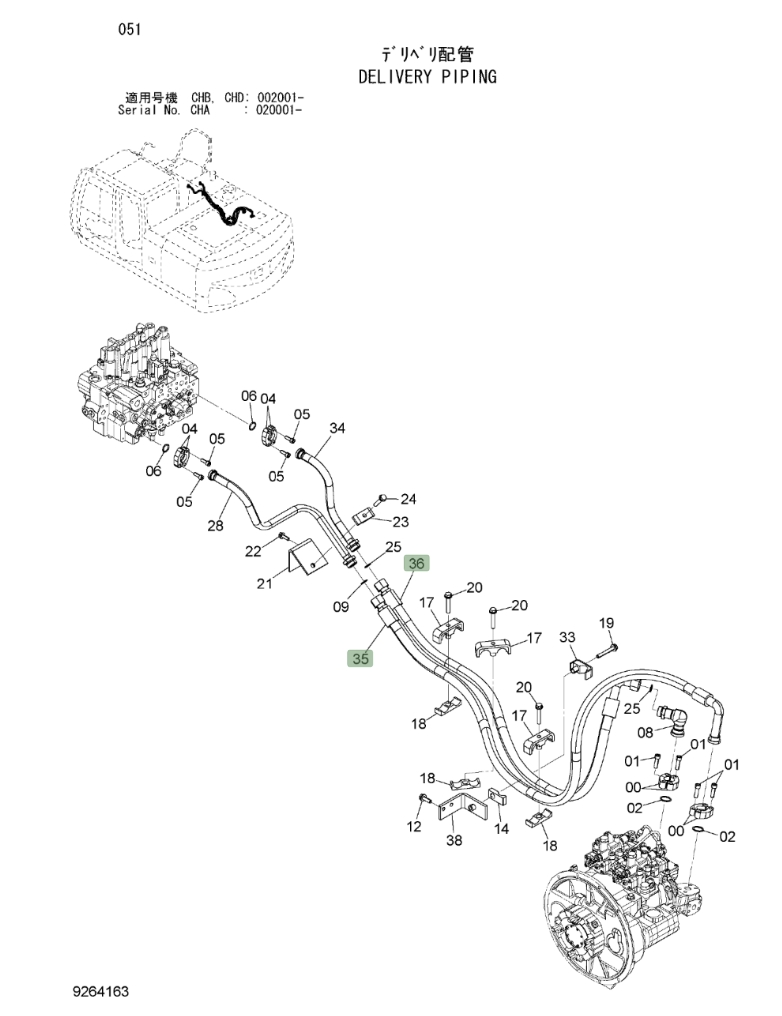

Installation diagram — Pipe No. 35
Locate Pipe No. 35 in the diagram, then confirm part number 4663676 before removing the hose.
Repair specifications
- Part number
- 4663676
- Diagram pipe number
- 35
- Installation route
- 液压泵~分配阀(进油)
- Hose specification
- DN22;4SP-14;34.5MPa
- Finished length
- 1,850 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
