Individual hose record
4657217 Hose Repair Specifications
Excavator · Hitachi · ZX370F-LL-6N · Hydraulic Tank
Finished length1,950 mm
Locate this hose

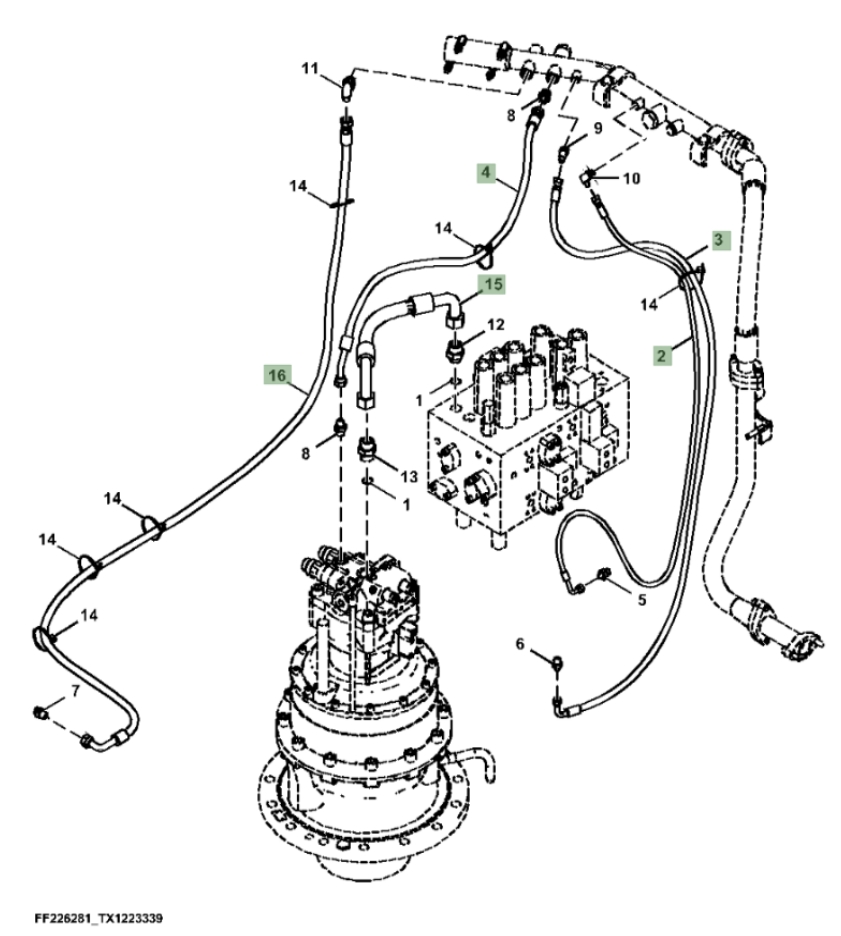

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4657217 before removing the hose.
Repair specifications
- Part number
- 4657217
- Diagram pipe number
- 2
- Installation route
- 回油铁管(液压油箱)~
- Hose specification
- DN6;1SN-04;7Mpa
- Finished length
- 1,950 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
