Individual hose record
4438290 Hose Repair Specifications
Excavator · Hitachi · ZX350F · Control Lever
Finished length1,950 mm
Locate this hose

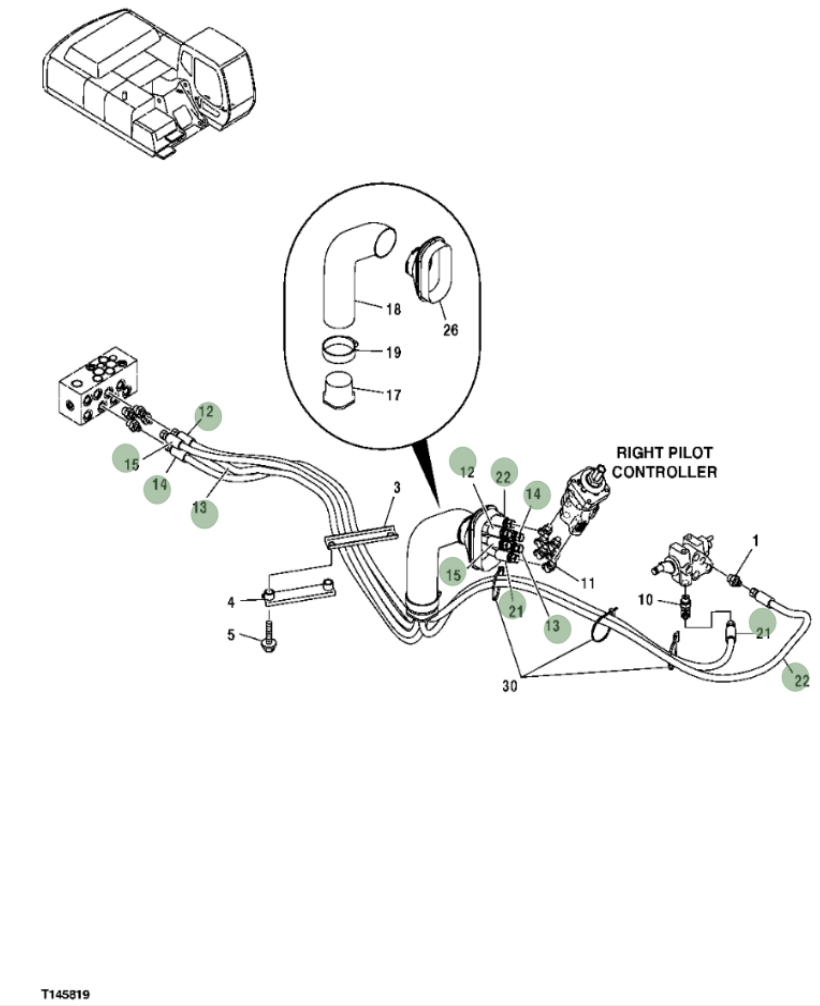

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 4438290 before removing the hose.
Repair specifications
- Part number
- 4438290
- Diagram pipe number
- 22
- Installation route
- 右手柄~进回油阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,950 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
