Individual hose record

KHJ2190 Hose Repair Specifications

Excavator · Case · CX250C LC · Control Valve

Finished length420 mm

Locate this hose

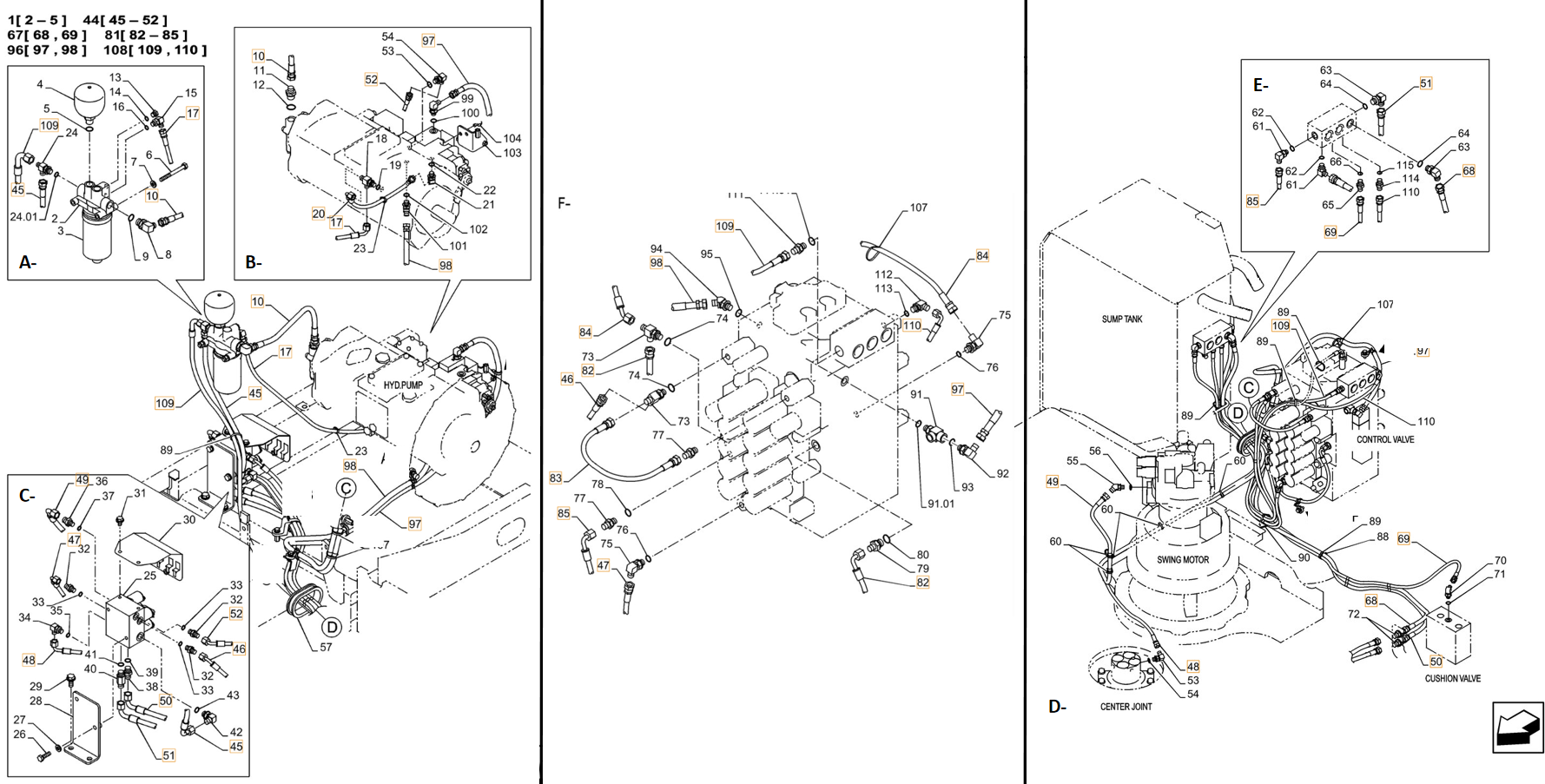

Installation diagram — Pipe No. F83

Locate Pipe No. F83 in the diagram, then confirm part number KHJ2190 before removing the hose.

Case CX250C LC installation diagram showing hydraulic hose KHJ2190 at Pipe No. F83 — **Case CX250C LC · KHJ2190**Part KHJ2190 · Pipe No. F83Open full-size diagram

Repair specifications

Part number: KHJ2190
Diagram pipe number: F83
Installation route: 分配阀前左~分配阀前右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 420 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
