KHJ2292 Hose Repair Specifications

Excavator · Case · CX80C · Attachments – Breaker

Finished length280 mm

Locate this hose

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number KHJ2292 before removing the hose.

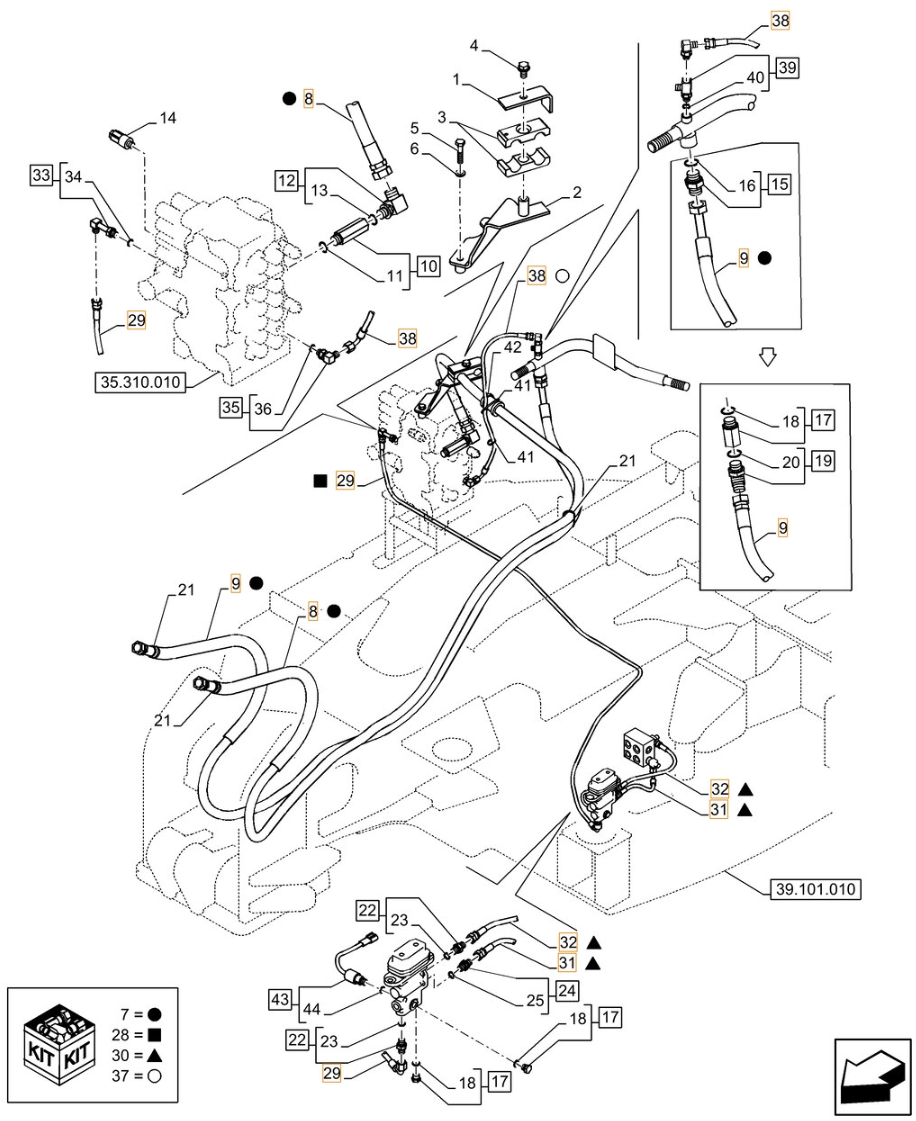

Case CX80C installation diagram showing hydraulic hose KHJ2292 at Pipe No. 31 — **Case CX80C · KHJ2292**Part KHJ2292 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: KHJ2292
Diagram pipe number: 31
Installation route: 破碎器踏板~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 280 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
