Individual hose record
4654125 Hose Repair Specifications
Excavator · Hitachi · ZX225USLC-3 · Attachments – Breaker
Finished length850 mm
Locate this hose

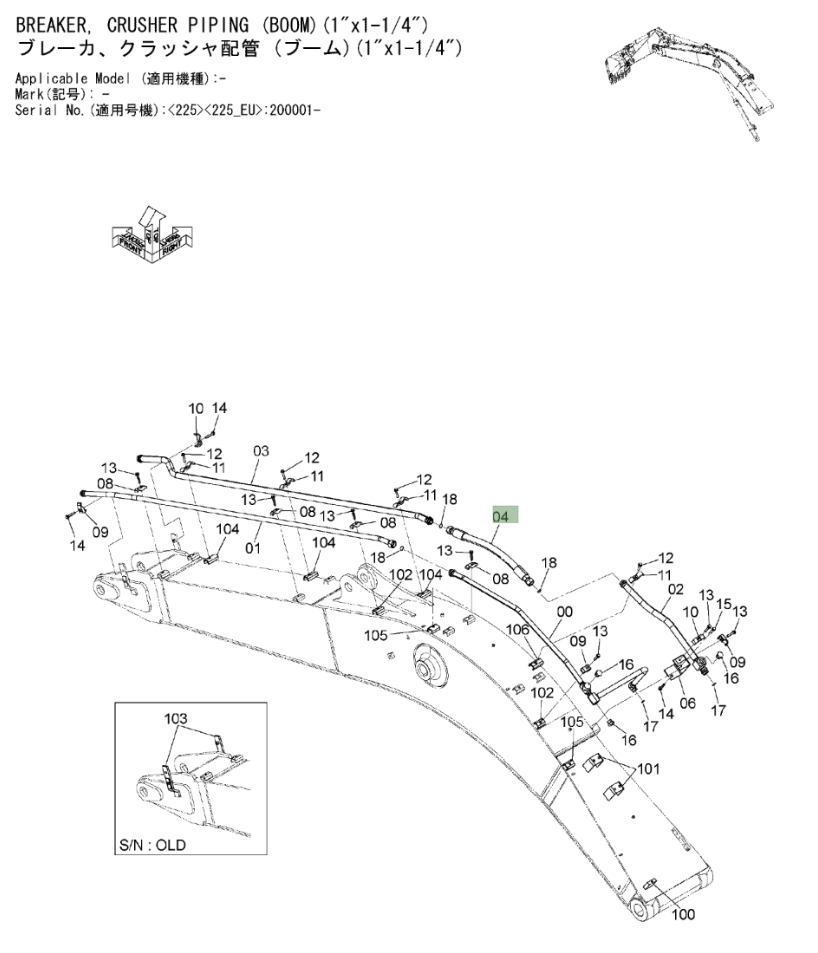

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4654125 before removing the hose.
Repair specifications
- Part number
- 4654125
- Diagram pipe number
- 4
- Installation route
- 大臂(前段)~大臂(后段)
- Hose specification
- DN32;4SP-20;35Mpa
- Finished length
- 850 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
