Individual hose record

4630949 Hose Repair Specifications

Excavator · Hitachi · ZX130-5N · Solenoid Valve

Finished length560 mm

Locate this hose

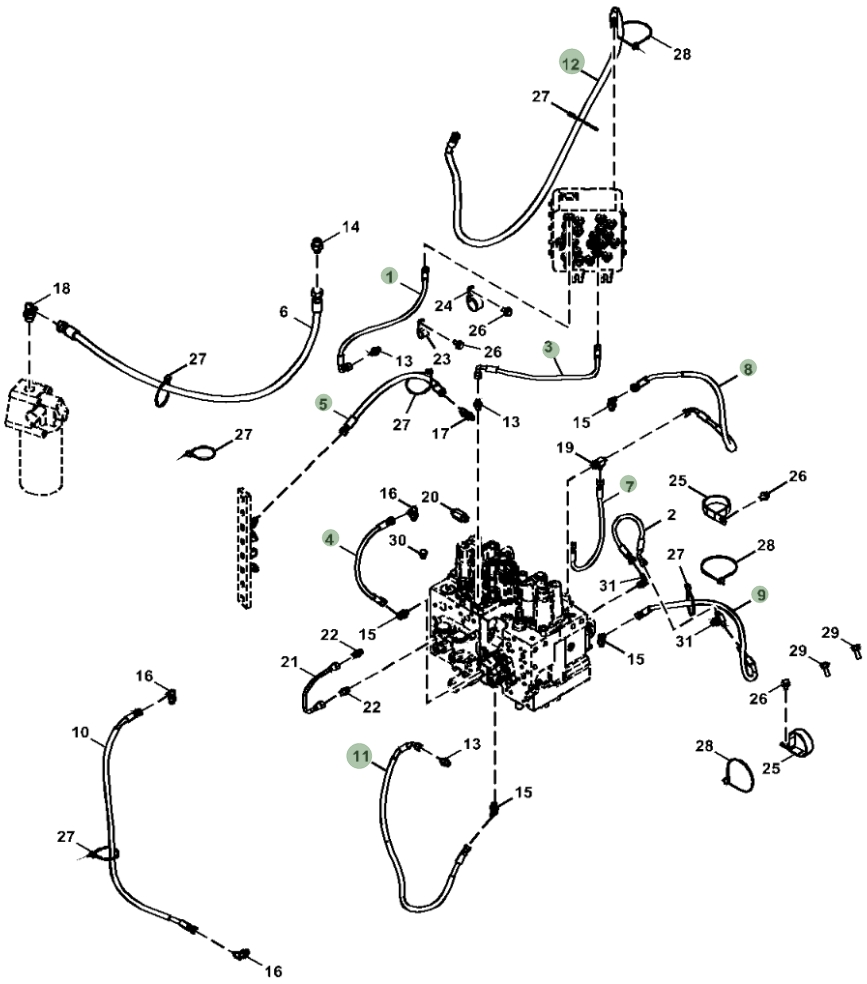

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 4630949 before removing the hose.

Hitachi ZX130-5N installation diagram showing hydraulic hose 4630949 at Pipe No. 3
Hitachi ZX130-5NPart 4630949 · Pipe No. 3Open full-size diagram

Repair specifications

Part number
4630949
Diagram pipe number
3
Installation route
电磁阀~中转接头
Hose specification
DN6;1SN-04;22.5MPa
Finished length
560 mm
Working pressure
22.5 MPa
Left fitting
美制内螺纹74°内锥
Right fitting
90°美制内螺纹74°内锥
Quantity
1
