Individual hose record
4397174 Hose Repair Specifications
Excavator · Hitachi · ZX130-6N · Attachments
Finished length1,450 mm
Locate this hose

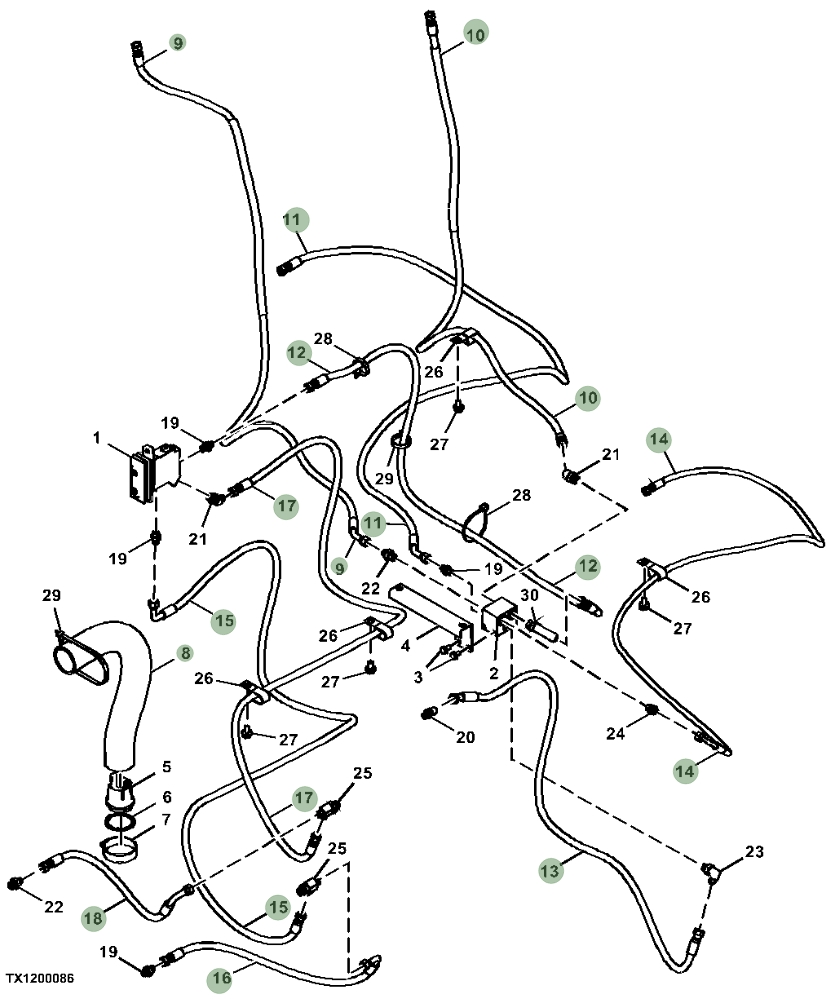

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4397174 before removing the hose.
Repair specifications
- Part number
- 4397174
- Diagram pipe number
- 12
- Installation route
- 推土铲手柄~过渡阀块(推土铲手柄)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
