Individual hose record

730501000574 Hose Repair Specifications

Excavator · Sunward · SWE225E-3H · Control Lever

Finished length1,850 mm

Locate this hose

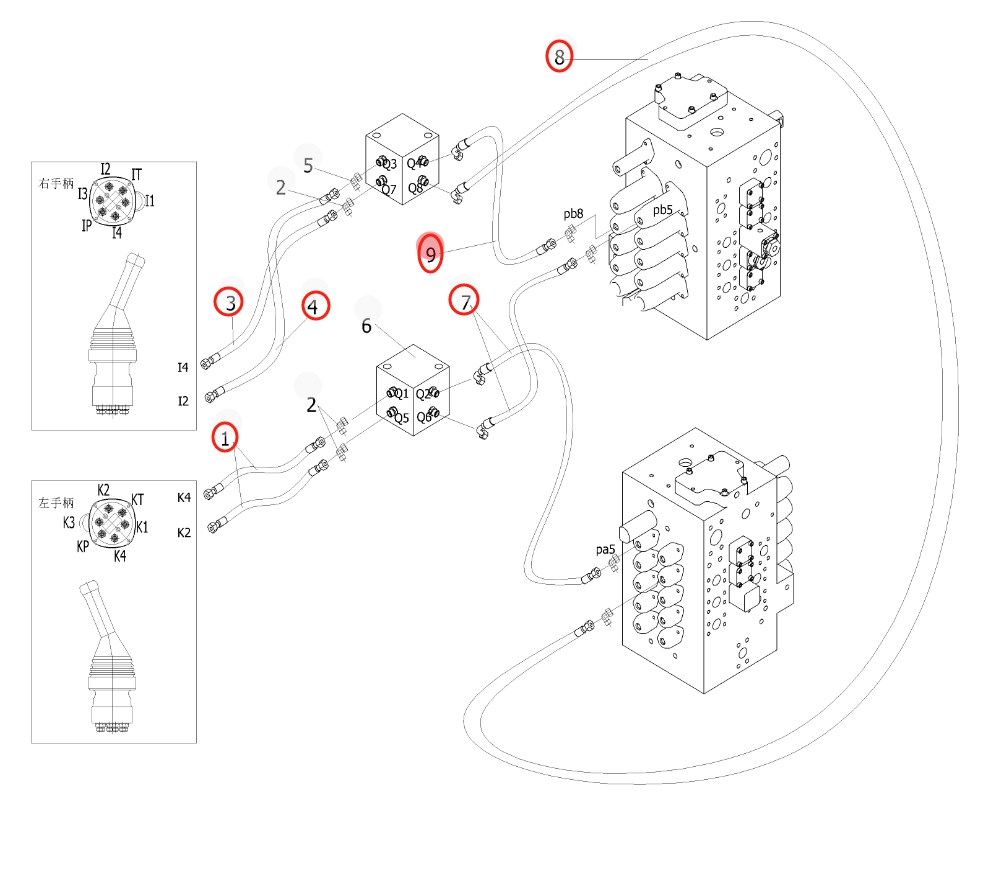

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 730501000574 before removing the hose.

Sunward SWE225E-3H installation diagram showing hydraulic hose 730501000574 at Pipe No. 4 — Sunward SWE225E-3HPart 730501000574 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 730501000574
Diagram pipe number: 4
Installation route: 右手柄I2~模式切换阀Q3
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,850 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 3

730501001026

Installation route: 右手柄I4~模式切换阀Q7

Length: 1,850 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 46

730501001405

Installation route: 右手柄~分配阀左

Length: 2,950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 45

730502002435

Installation route: 左手柄~进回油阀

Length: 1,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 46

730501001405

Installation route: 右手柄~分配阀右

Length: 2,950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 45

730502002435

Installation route: 右手柄~进回油阀

Length: 1,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
