Individual hose record

4288438 Hose Repair Specifications

Excavator · Hitachi · EX100-3 · Attachments – Other Kits

Finished length1,000 mm

Locate this hose

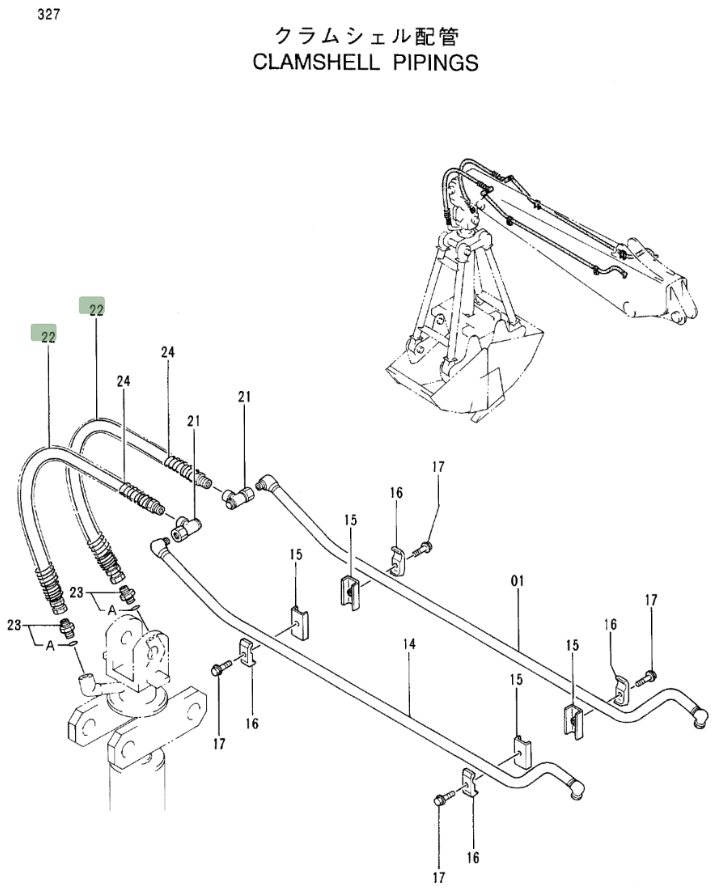

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number 4288438 before removing the hose.

Hitachi EX100-3 installation diagram showing hydraulic hose 4288438 at Pipe No. 22 — Hitachi EX100-3Part 4288438 · Pipe No. 22Open full-size diagram

Repair specifications

Part number: 4288438
Diagram pipe number: 22
Installation route: 蛤壳斗油缸
Hose specification: DN12;4SP-8;34.5Mpa
Finished length: 1,000 mm
Working pressure: 34.5 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制锥形外螺纹30°内锥
Quantity: 2
