Individual hose record

157203A1 Hose Repair Specifications

Excavator · Case · CX300D NLC · Swivel Joint

Finished length2,800 mm

Locate this hose

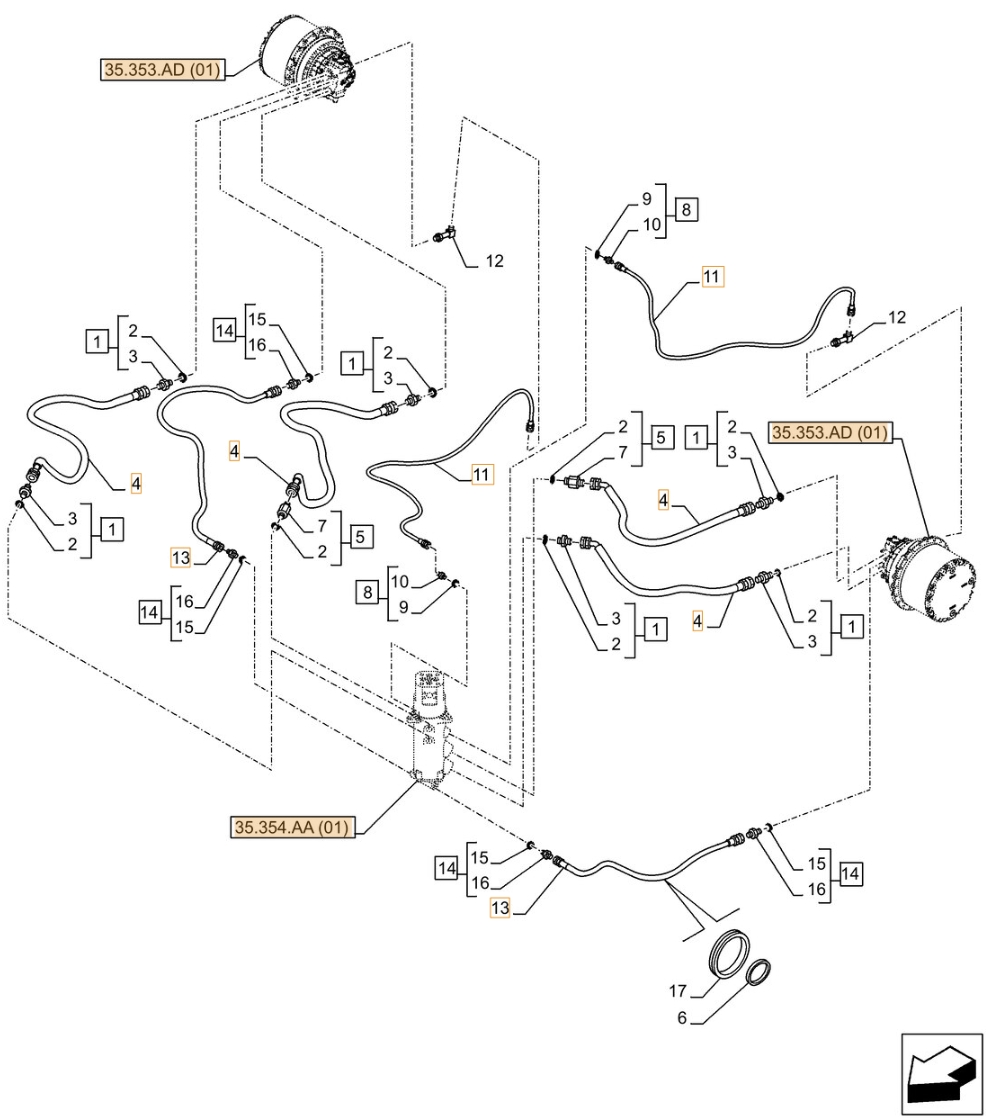

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 157203A1 before removing the hose.

Case CX300D NLC installation diagram showing hydraulic hose 157203A1 at Pipe No. 11
Case CX300D NLC · 157203A1Part 157203A1 · Pipe No. 11Open full-size diagram

Repair specifications

Part number
157203A1
Diagram pipe number
11
Installation route
Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification
DN6;1SN-04;22.5MPa
Finished length
2,800 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 13

151919A1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
2,360 mm
Specification
DN13;2SN-08;27.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
