Individual hose record

4629655 Hose Repair Specifications

Excavator · Hitachi · ZX180LC-5G · Swivel Joint

Finished length2,000 mm

Locate this hose

Installation diagram — Pipe No. 0

Locate Pipe No. 0 in the diagram, then confirm part number 4629655 before removing the hose.

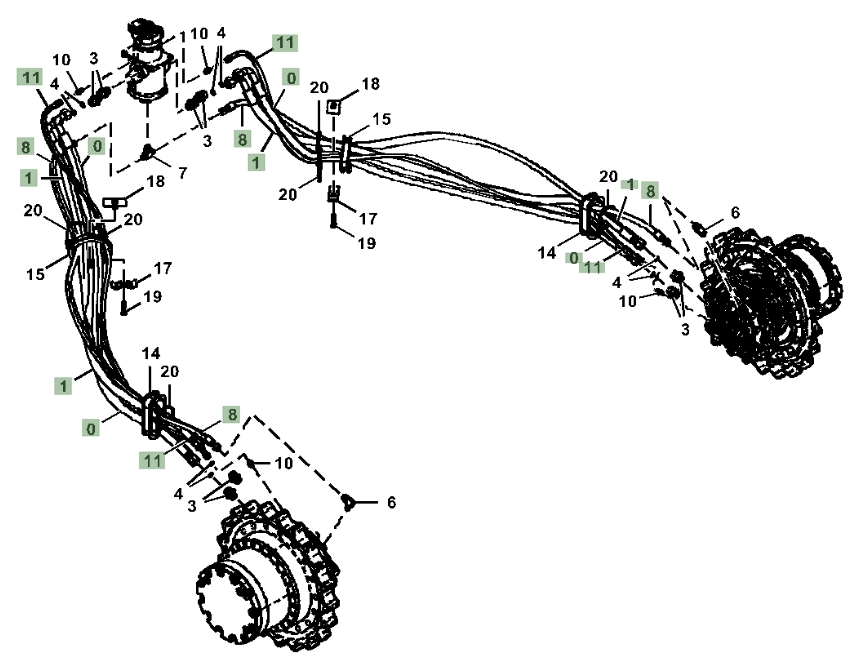

Hitachi ZX180LC-5G installation diagram showing hydraulic hose 4629655 at Pipe No. 0
Hitachi ZX180LC-5GPart 4629655 · Pipe No. 0Open full-size diagram

Repair specifications

Part number
4629655
Diagram pipe number
0
Installation route
Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification
DN19;4SH-12;42MPa
Finished length
2,000 mm
Working pressure
42 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 7

9255468

Installation route: 回转接头~分配阀左上

Length
1,000 mm
Specification
DN19;4SP-12;35Mpa
Left fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting
90° light-series flangeOriginal Chinese: 90°法兰-轻型
View full repair specifications

Diagram Pipe No. 8

4262927

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
2,100 mm
Specification
DN13;2SN-08;27.5MPa
Left fitting
美制内螺纹74°内锥
Right fitting
美制内螺纹74°内锥
View full repair specifications

Diagram Pipe No. 13

4313438

Installation route: 回转接头~回油铁管(液压油箱)

Length
1,900 mm
Specification
DN12;1SN-8;7Mpa
Left fitting
美制内螺纹37°内锥
Right fitting
90°美制内螺纹37°内锥
View full repair specifications

Diagram Pipe No. 13

9259949

Installation route: 回转接头~回油铁管(液压油箱)

Length
1,900 mm
Specification
DN12;1SN-8;7Mpa
Left fitting
美制内螺纹37°内锥
Right fitting
90°美制内螺纹37°内锥
View full repair specifications

Diagram Pipe No. 8

9255469

Installation route: 回转接头~分配阀左下

Length
900 mm
Specification
DN19;4SP-12;35Mpa
Left fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting
90° light-series flangeOriginal Chinese: 90°法兰-轻型
View full repair specifications

Diagram Pipe No. 1

4629656

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
2,000 mm
Specification
DN19;4SH-12;42MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 8

4643291

Installation route: 回转接头~分配阀左下

Length
900 mm
Specification
DN19;4SP-12;35Mpa
Left fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting
90° light-series flangeOriginal Chinese: 90°法兰-轻型
View full repair specifications

Diagram Pipe No. 7

4643290

Installation route: 回转接头~分配阀左上

Length
1,000 mm
Specification
DN19;4SP-12;35Mpa
Left fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting
90° light-series flangeOriginal Chinese: 90°法兰-轻型
View full repair specifications
