Individual hose record
4351853 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-6 · Grease Lines
Finished length900 mm
Locate this hose

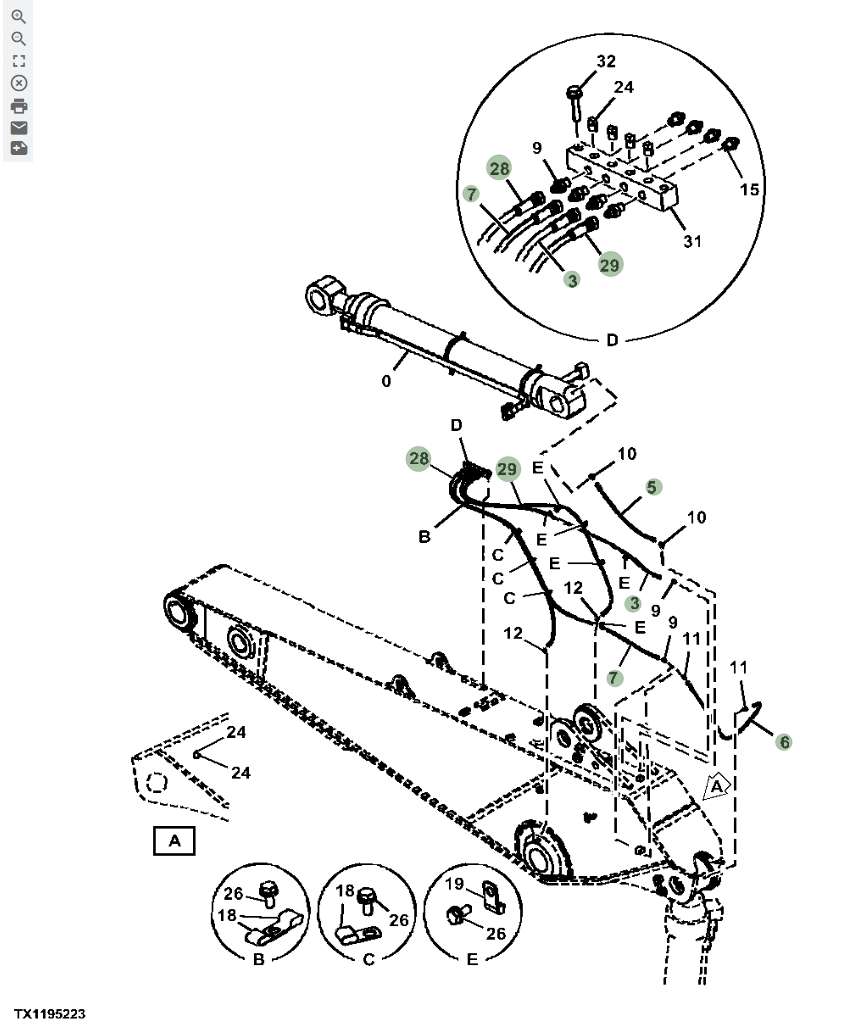

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4351853 before removing the hose.
Repair specifications
- Part number
- 4351853
- Diagram pipe number
- 6
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;2SN-04;28Mpa
- Finished length
- 900 mm
- Working pressure
- 28 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
