Individual hose record
4287097 Hose Repair Specifications
Excavator · Hitachi · EX220LC-3 · Control Lever
Finished length1,900 mm
Locate this hose

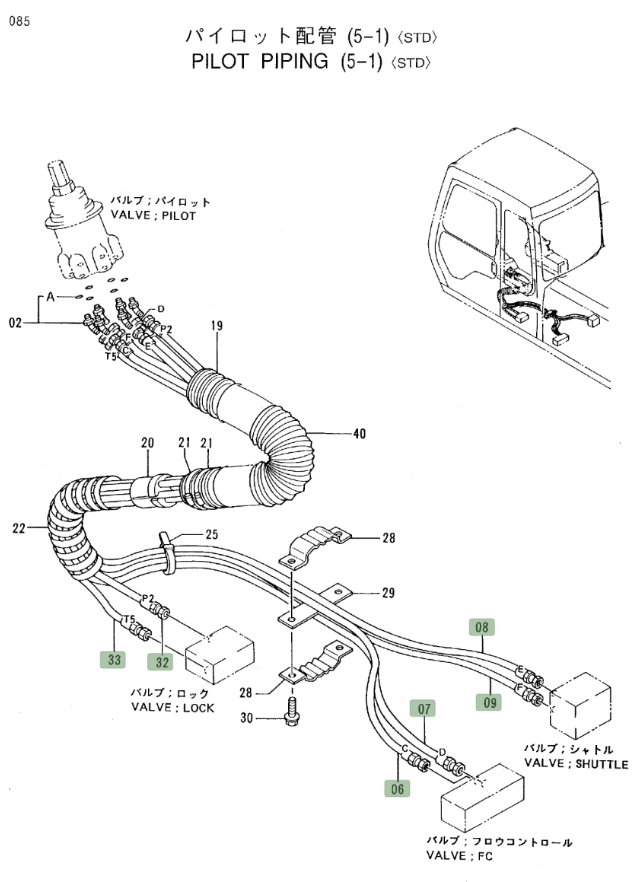

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 4287097 before removing the hose.
Repair specifications
- Part number
- 4287097
- Diagram pipe number
- 7
- Installation route
- 左手柄~中转接头(手柄)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
