Individual hose record
4107297 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Grease Lines
Finished length600 mm
Locate this hose

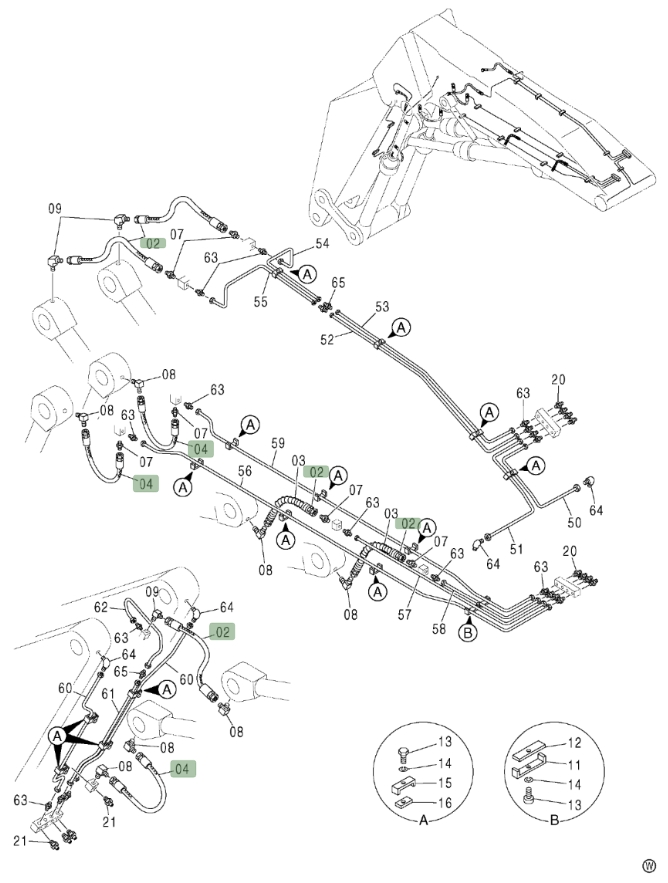

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4107297 before removing the hose.
Repair specifications
- Part number
- 4107297
- Diagram pipe number
- 2
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;1SN-04;7MPa
- Finished length
- 600 mm
- Working pressure
- 7 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 2
