KHJ2199 Hose Repair Specifications

Excavator · Case · CX210BLR · Pedal

Finished length2,950 mm

Locate this hose

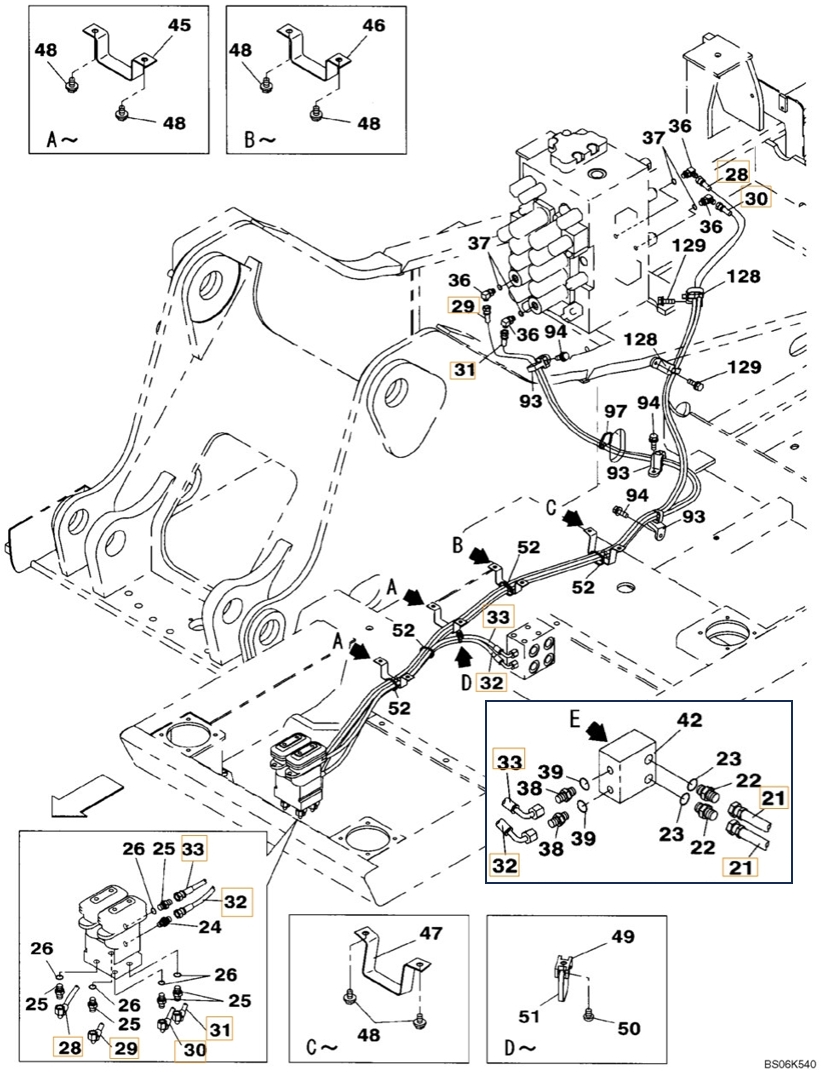

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number KHJ2199 before removing the hose.

Part number: KHJ2199
Diagram pipe number: 30
Installation route: 行走踏板~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
