4208494 Hose Repair Specifications

Excavator · Hitachi · EX200LC · Control Lever

Finished length1,900 mm

Locate this hose

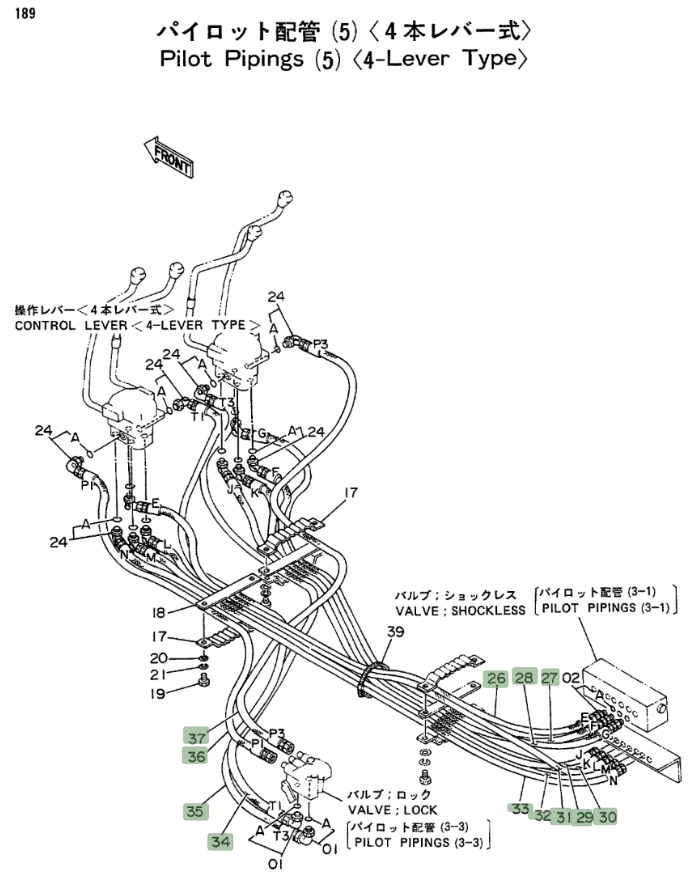

Installation diagram — Pipe No. 32

Locate Pipe No. 32 in the diagram, then confirm part number 4208494 before removing the hose.

Hitachi EX200LC installation diagram showing hydraulic hose 4208494 at Pipe No. 32 — Hitachi EX200LCPart 4208494 · Pipe No. 32Open full-size diagram

Repair specifications

Part number: 4208494
Diagram pipe number: 32
Installation route: 左手柄~接线板(中转接头)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 1,900 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 48

4203069

Installation route: 中转接头~分配阀上

Length: 1,180 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 33

4208495

Installation route: 左手柄~接线板(中转接头)

Length: 2,030 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 36

4208489

Installation route: 左手柄~进回油阀

Length: 870 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 30

4208492

Installation route: 右手柄~接线板(中转接头)

Length: 1,870 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 45

4203066

Installation route: 中转接头~分配阀上

Length: 1,180 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
