Individual hose record
4450428 Hose Repair Specifications
Excavator · Hitachi · ZX600LC · Pedal
Finished length650 mm
Locate this hose

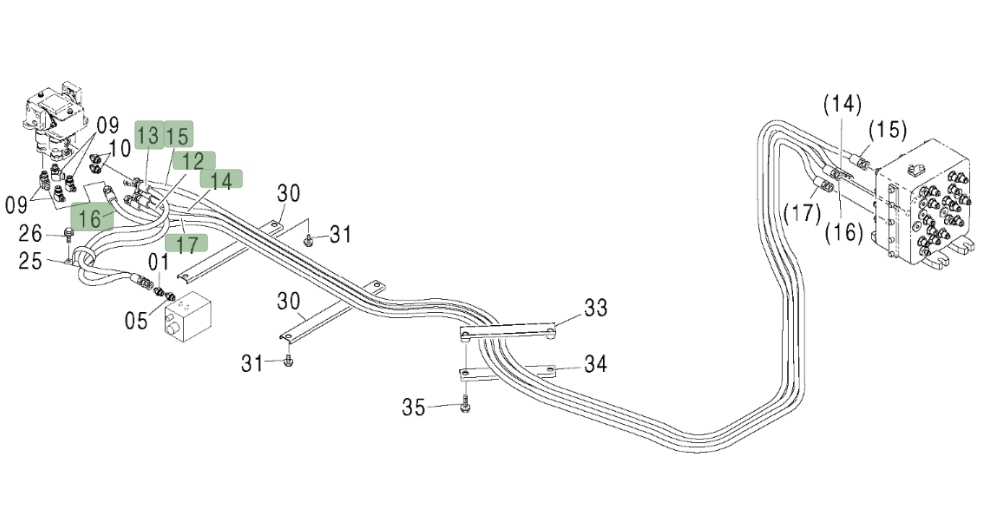

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4450428 before removing the hose.
Repair specifications
- Part number
- 4450428
- Diagram pipe number
- 13
- Installation route
- 行走踏板~进回油阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 650 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
