Diagram Pipe No. 0A
4436269
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 350 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
4684327 Hose Repair Specifications
Excavator · Hitachi · ZX225USLC-3 · Attachments – Lock Valve
Finished length1,800 mm
Locate this hose

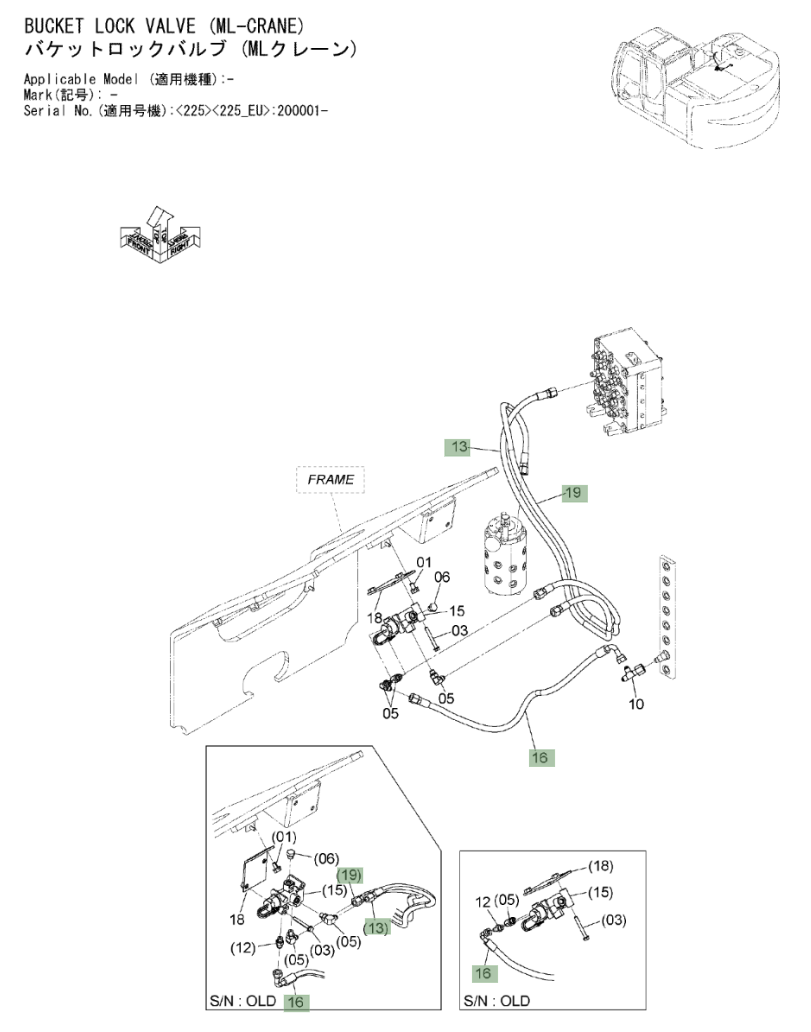

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4684327 before removing the hose.
Repair specifications
- Part number
- 4684327
- Diagram pipe number
- 19
- Installation route
- 电磁阀(锁止阀)~模式转换阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,800 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 1A
4436267
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 420 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
