Individual hose record

167873A1 Hose Repair Specifications

Excavator · Case · CX160 · Control Lever

Finished length400 mm

Locate this hose

Installation diagram — Pipe No. 70

Locate Pipe No. 70 in the diagram, then confirm part number 167873A1 before removing the hose.

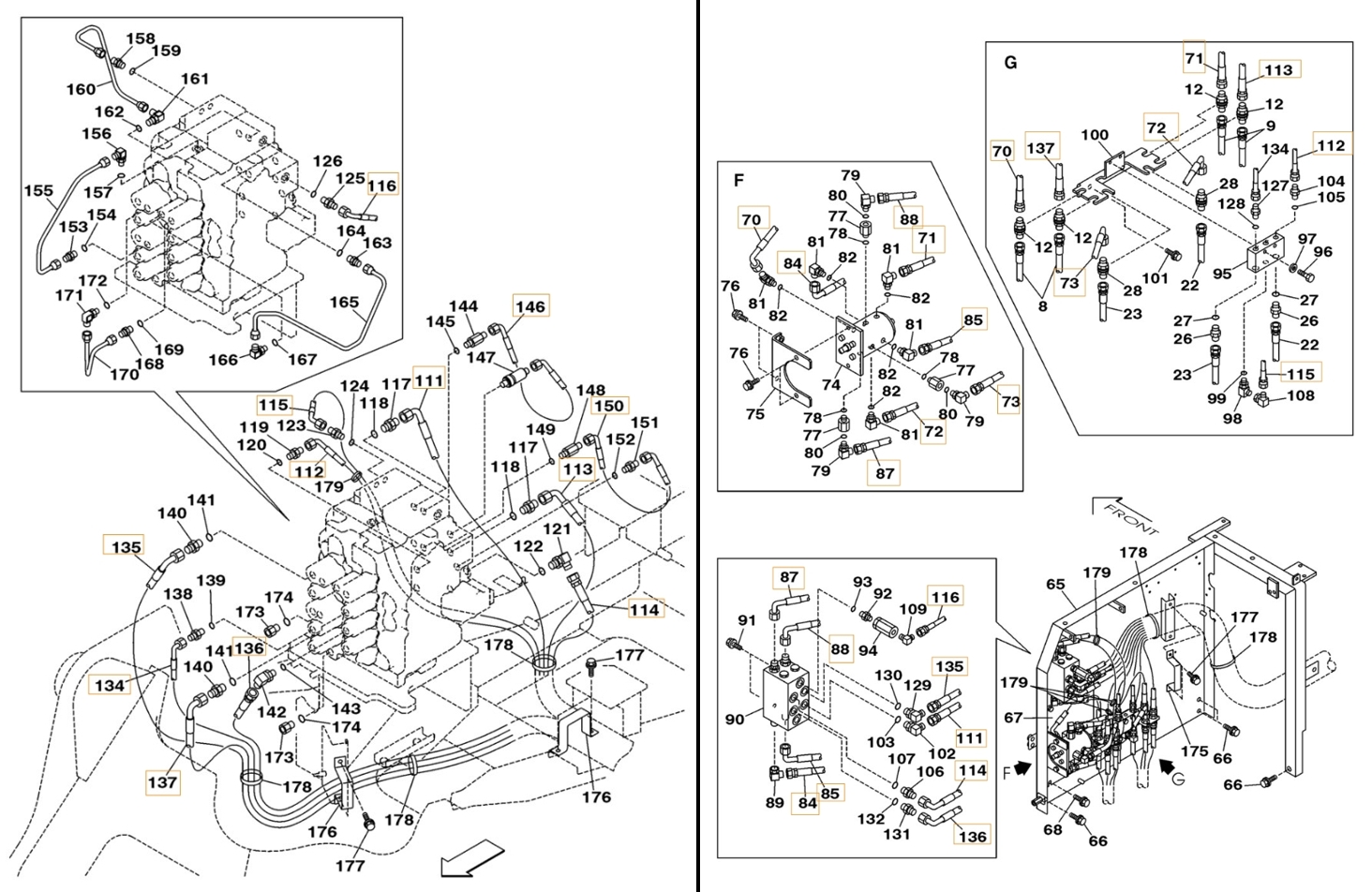

Case CX160 installation diagram showing hydraulic hose 167873A1 at Pipe No. 70 — **Case CX160**Part 167873A1 · Pipe No. 70Open full-size diagram

Repair specifications

Part number: 167873A1
Diagram pipe number: 70
Installation route: 中转接头~模式转换阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 400 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
