Individual hose record

4452858 Hose Repair Specifications

Excavator · Hitachi · ZX75US · Boom Assembly

Finished length1,120 mm

Locate this hose

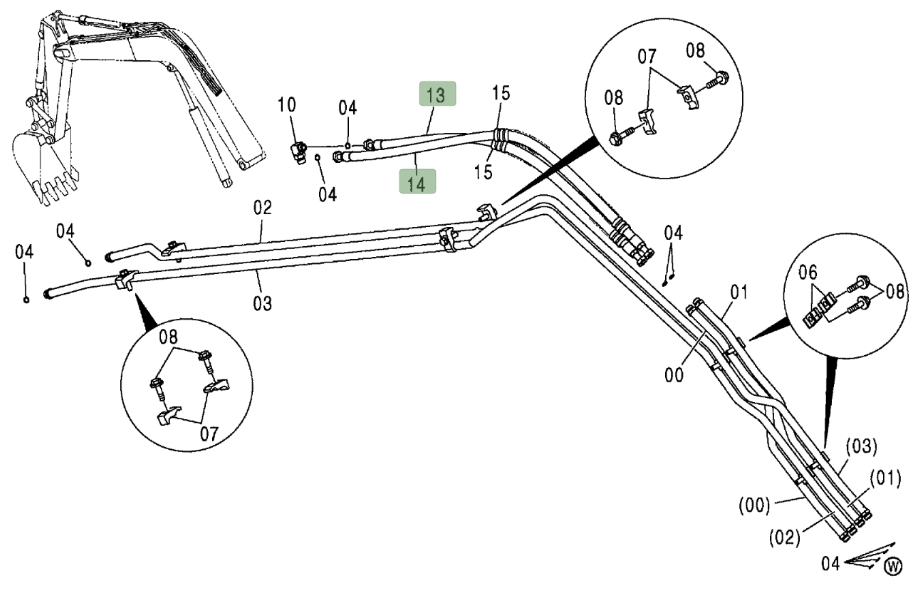

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 4452858 before removing the hose.

Part number: 4452858
Diagram pipe number: 14
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN12;2SN-8;27.5MPa
Finished length: 1,120 mm
Working pressure: 27.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 13

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 1,000 mm
Specification: DN12;2SN-8;27.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
