Individual hose record

KHJ2149 Hose Repair Specifications

Excavator · Case · CX210BLR · Control Lever

Finished length360 mm

Locate this hose

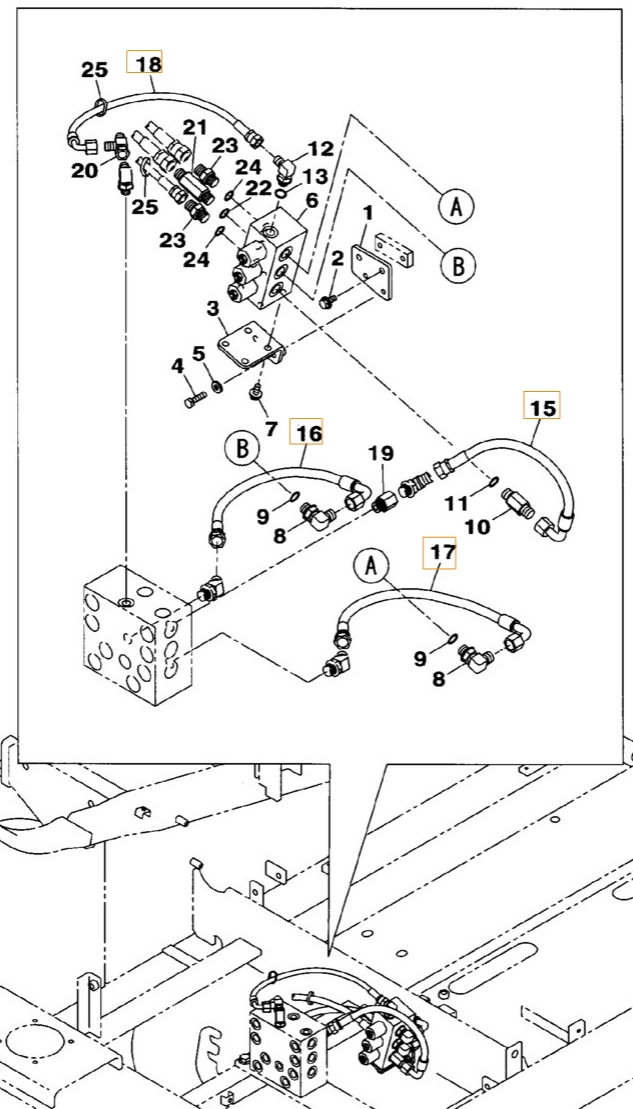

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number KHJ2149 before removing the hose.

Case CX210BLR installation diagram showing hydraulic hose KHJ2149 at Pipe No. 15 — **Case CX210BLR**Part KHJ2149 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: KHJ2149
Diagram pipe number: 15
Installation route: 中转接头~电磁阀(中转接头旁)
Hose specification: DN10;1SN-06;18MPa
Finished length: 360 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 91

KHJ11570

Installation route: 中转接头~分配阀前

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 16

KHJ2169

Installation route: 中转接头~电磁阀(中转接头旁)

Length: 450 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 19

159217A1

Installation route: 左手柄~模式转换阀

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 69

KHJ2255

Installation route: 中转接头~液压油箱

Length: 2,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 122

KHJ2054

Installation route: 中转接头~分配阀后

Length: 1,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

159211A1

Installation route: 右手柄~中转接头

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 20

KRJ4381

Installation route: 左手柄~模式转换阀

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 19

159217A1

Installation route: 左手柄~中转接头

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications
