Diagram Pipe No. 18
4644543
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 3,400 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
Individual hose record
4644290 Hose Repair Specifications
Excavator · Hitachi · ZX650LC-3 · Swivel Joint
Finished length1,910 mm
Locate this hose

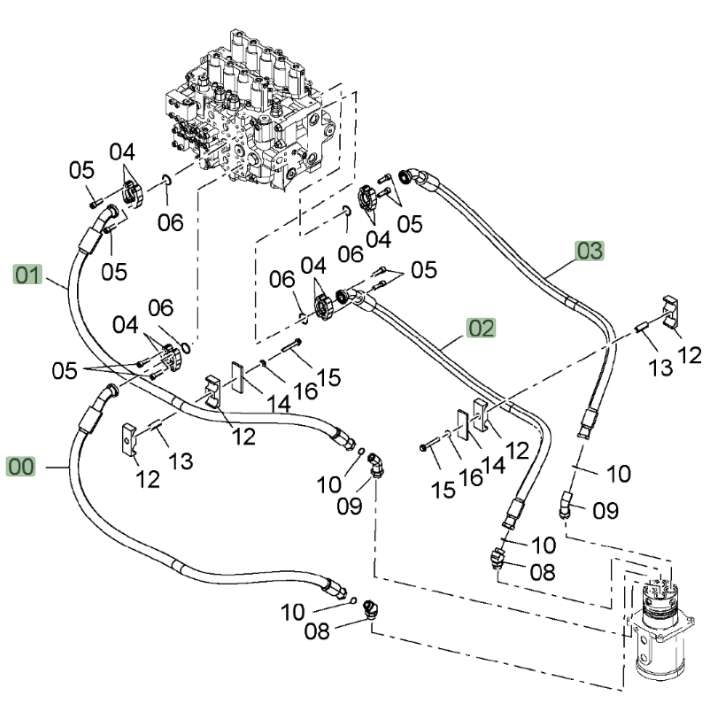

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4644290 before removing the hose.
Repair specifications
- Part number
- 4644290
- Diagram pipe number
- 1
- Installation route
- 回转接头~分配阀右上
- Hose specification
- DN25;4SP-16;32.5MPa
- Finished length
- 1,910 mm
- Working pressure
- 32.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,850 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Length
- 2,500 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 1,800 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Length
- 2,950 mm
- Specification
- DN25;4SH-16;38Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,880 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
