Individual hose record
4368895 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Control Valve
Finished length650 mm
Locate this hose

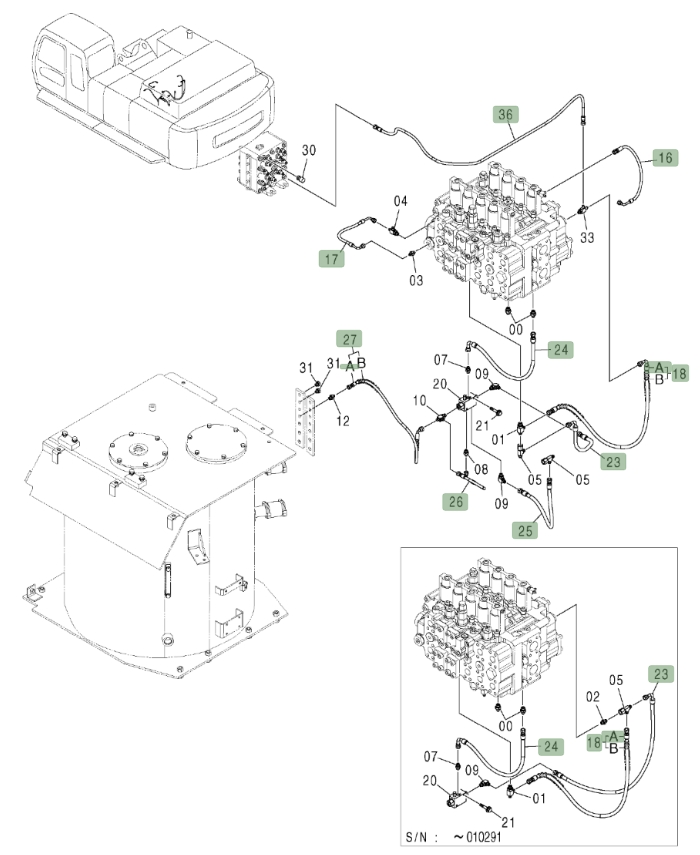

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4368895 before removing the hose.
Repair specifications
- Part number
- 4368895
- Diagram pipe number
- 25
- Installation route
- 分配阀左~过渡阀块(分配阀)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
