- Length
- 950 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Individual hose record
DS2093180 Hose Repair Specifications
Excavator · Doosan · B55W-2 · Solenoid Valve
Finished length450 mm
Locate this hose

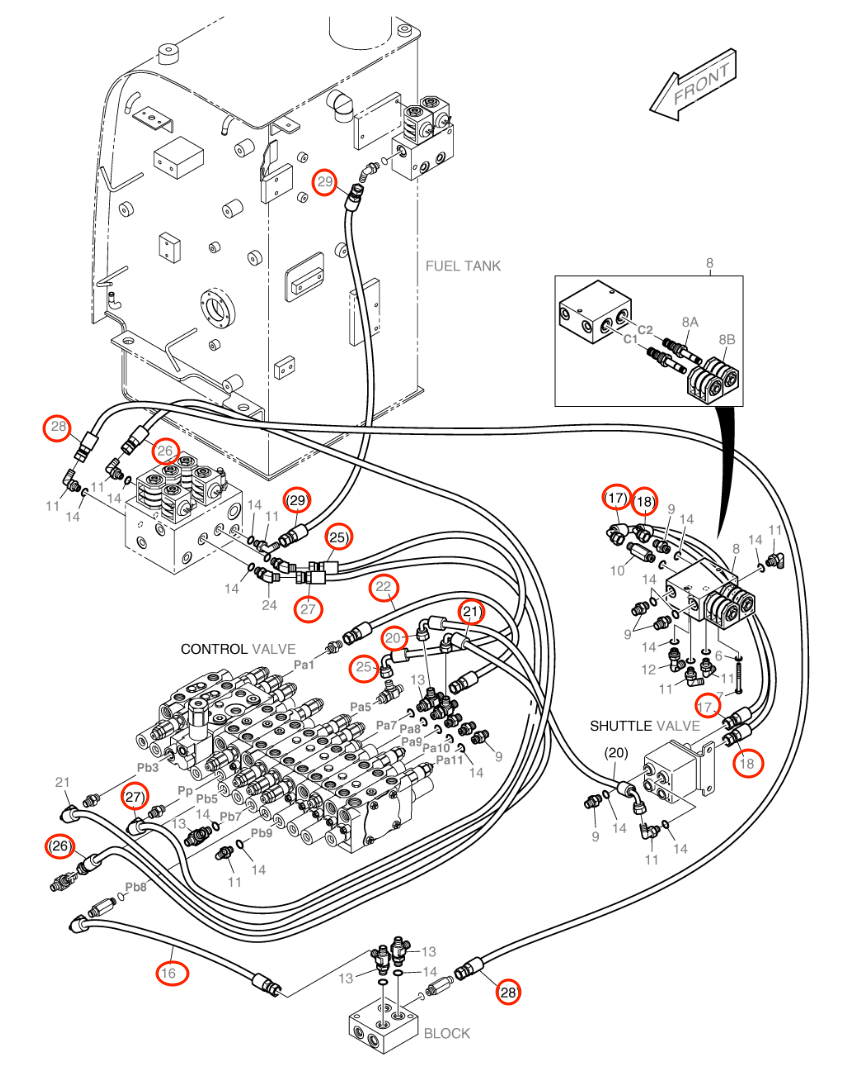

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number DS2093180 before removing the hose.
Repair specifications
- Part number
- DS2093180
- Diagram pipe number
- 17
- Installation route
- 电磁阀~梭阀(手柄)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 450 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
