Individual hose record
4702228 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-6 · Hydraulic Pump
Finished length800 mm
Locate this hose

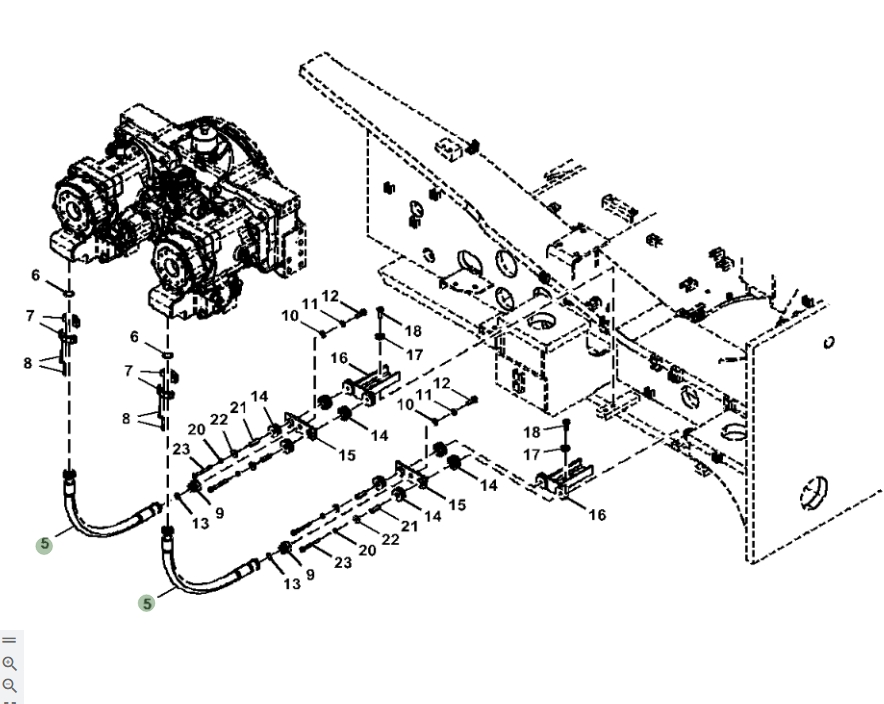

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4702228 before removing the hose.
Repair specifications
- Part number
- 4702228
- Diagram pipe number
- 5
- Installation route
- 液压泵~堵头(减震管)
- Hose specification
- DN25;4SH-16;34.5Mpa
- Finished length
- 800 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 2
