Individual hose record

4281535 Hose Repair Specifications

Excavator · Hitachi · EX100-2 · Pedal

Finished length1,050 mm

Locate this hose

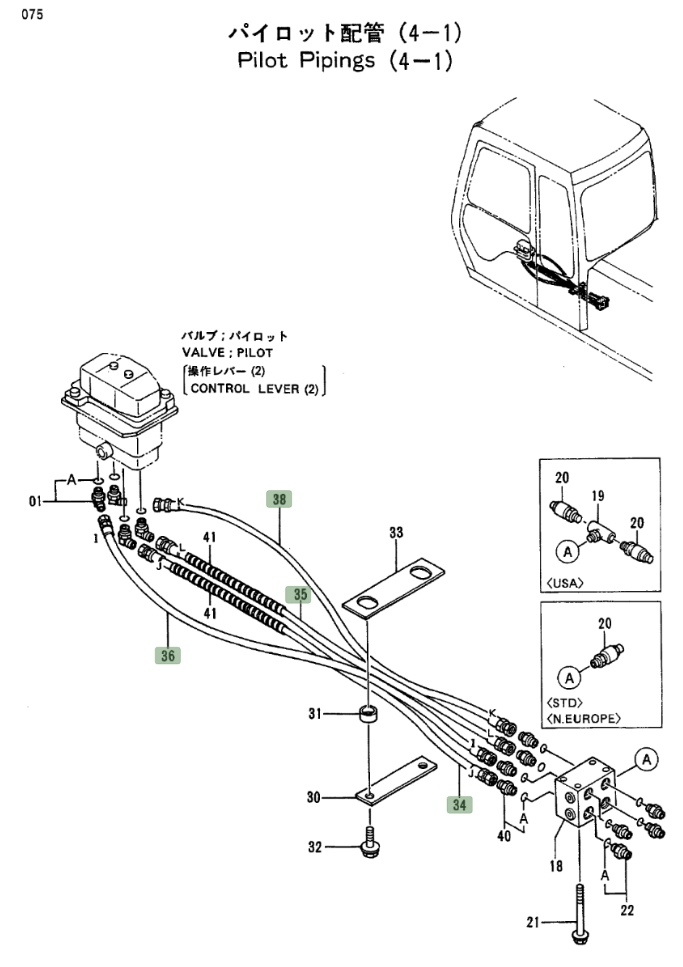

Installation diagram — Pipe No. 36

Locate Pipe No. 36 in the diagram, then confirm part number 4281535 before removing the hose.

Hitachi EX100-2 installation diagram showing hydraulic hose 4281535 at Pipe No. 36 — Hitachi EX100-2Part 4281535 · Pipe No. 36Open full-size diagram

Repair specifications

Part number: 4281535
Diagram pipe number: 36
Installation route: 行走推杆~过渡阀块(踏板)
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,050 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 38

4281537

Installation route: 行走推杆~过渡阀块(踏板)

Length: 1,050 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 16

4281530

Installation route: 行走推杆~进回油阀

Length: 1,200 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
