Individual hose record

KTA1166 Hose Repair Specifications

Excavator · Case · CX300E NLC · Swivel Joint

Finished length2,400 mm

Locate this hose

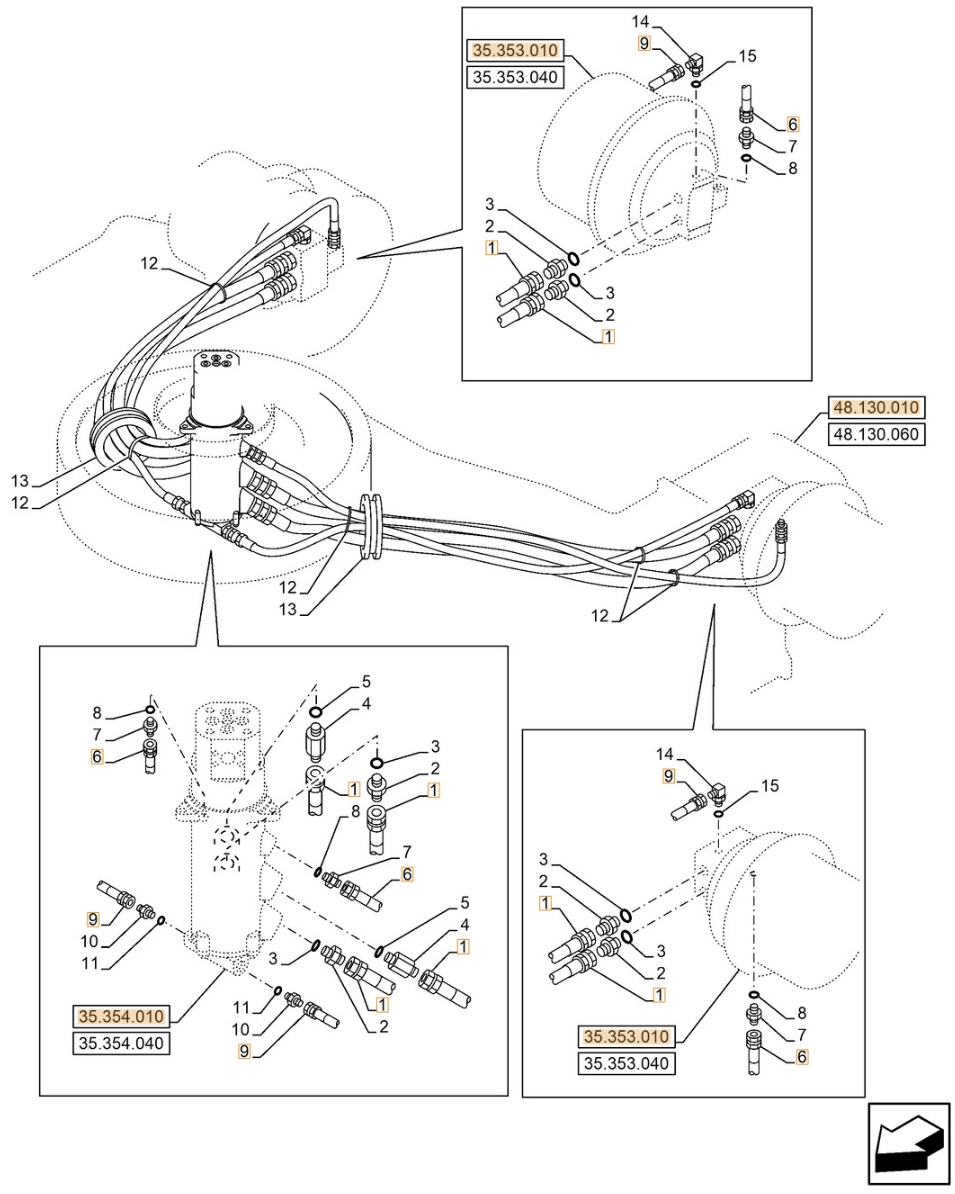

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number KTA1166 before removing the hose.

Part number: KTA1166
Diagram pipe number: 1
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 2,400 mm
Working pressure: 32.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 4

Same system

Diagram Pipe No. 9

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,360 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
