Individual hose record
4217369 Hose Repair Specifications
Excavator · Hitachi · EX300LC-3 · Attachments
Finished length2,050 mm
Locate this hose

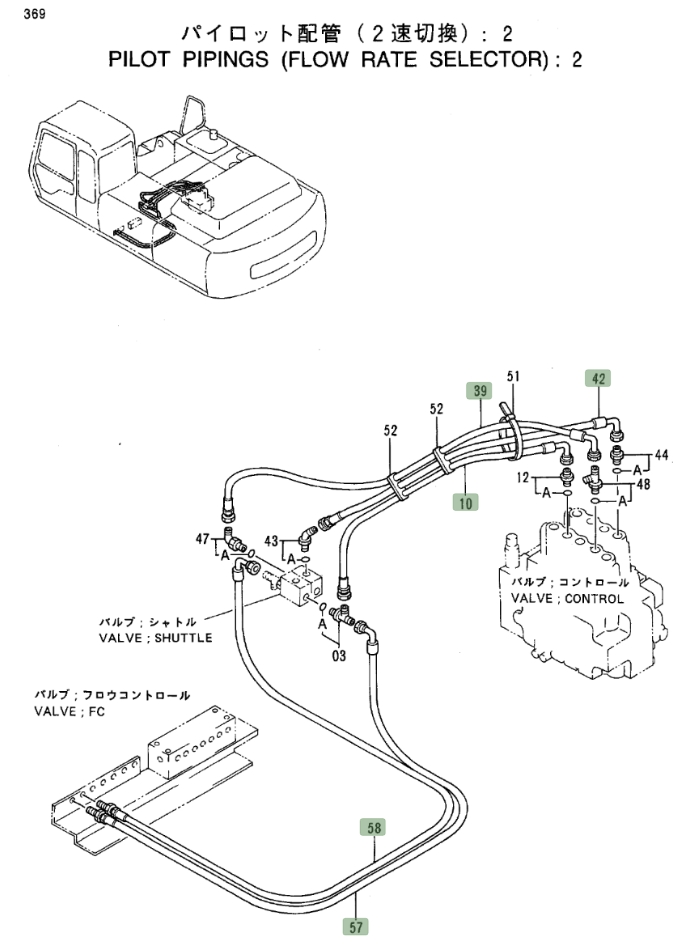

Installation diagram — Pipe No. 57
Locate Pipe No. 57 in the diagram, then confirm part number 4217369 before removing the hose.
Repair specifications
- Part number
- 4217369
- Diagram pipe number
- 57
- Installation route
- 过渡阀块(流速切换)~接线板(中转接头)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 2,050 mm
- Working pressure
- 14 MPa
- Left fitting
- 90°美制内螺纹37°内锥
- Right fitting
- 美制外螺纹37°外锥
- Quantity
- 1
