Individual hose record
KHJ14930 Hose Repair Specifications
Excavator · Case · CX220B · Swing Motor
Finished length1,400 mm
Locate this hose

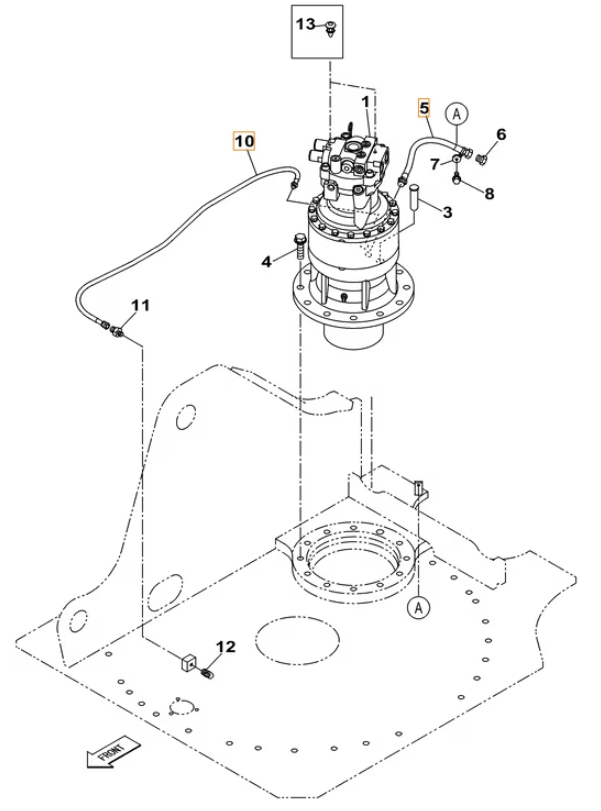

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number KHJ14930 before removing the hose.
Repair specifications
- Part number
- KHJ14930
- Diagram pipe number
- 10
- Installation route
- 回转马达~车架接头
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,400 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
