Individual hose record
4259489 Hose Repair Specifications
Excavator · Hitachi · ZX160LC · Swivel Joint
Finished length1,900 mm
Locate this hose

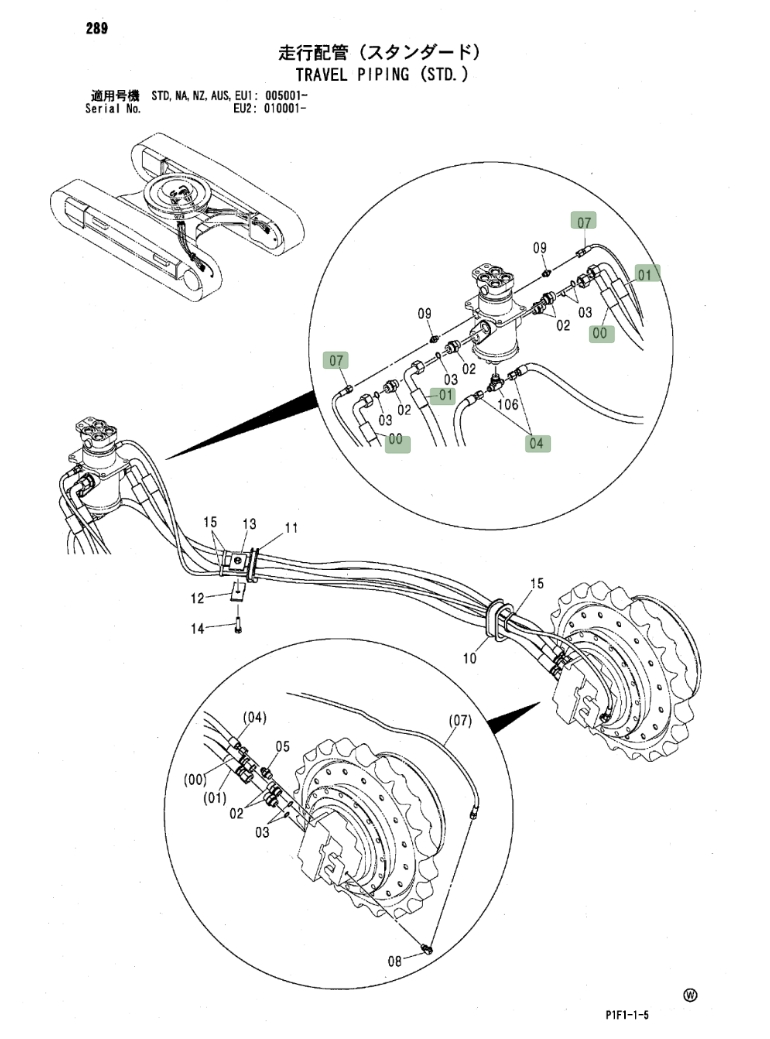

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4259489 before removing the hose.
Repair specifications
- Part number
- 4259489
- Diagram pipe number
- 4
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN12;1层纤维-8;10.5MPa
- Finished length
- 1,900 mm
- Working pressure
- 10.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
