Individual hose record

4656526 Hose Repair Specifications

Excavator · Hitachi · ZX200LC-3 · Pedal

Finished length3,200 mm

Locate this hose

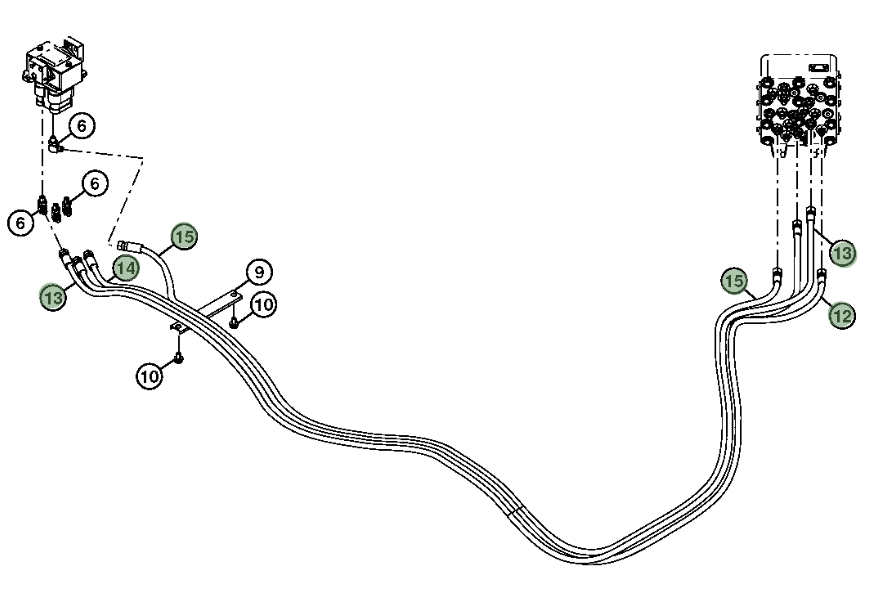

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 4656526 before removing the hose.

Hitachi ZX200LC-3 installation diagram showing hydraulic hose 4656526 at Pipe No. 12 — Hitachi ZX200LC-3Part 4656526 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 4656526
Diagram pipe number: 12
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,200 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
