Individual hose record

KRJ4381 Hose Repair Specifications

Excavator · Case · CX240C · Control Lever

Finished length1,800 mm

Locate this hose

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number KRJ4381 before removing the hose.

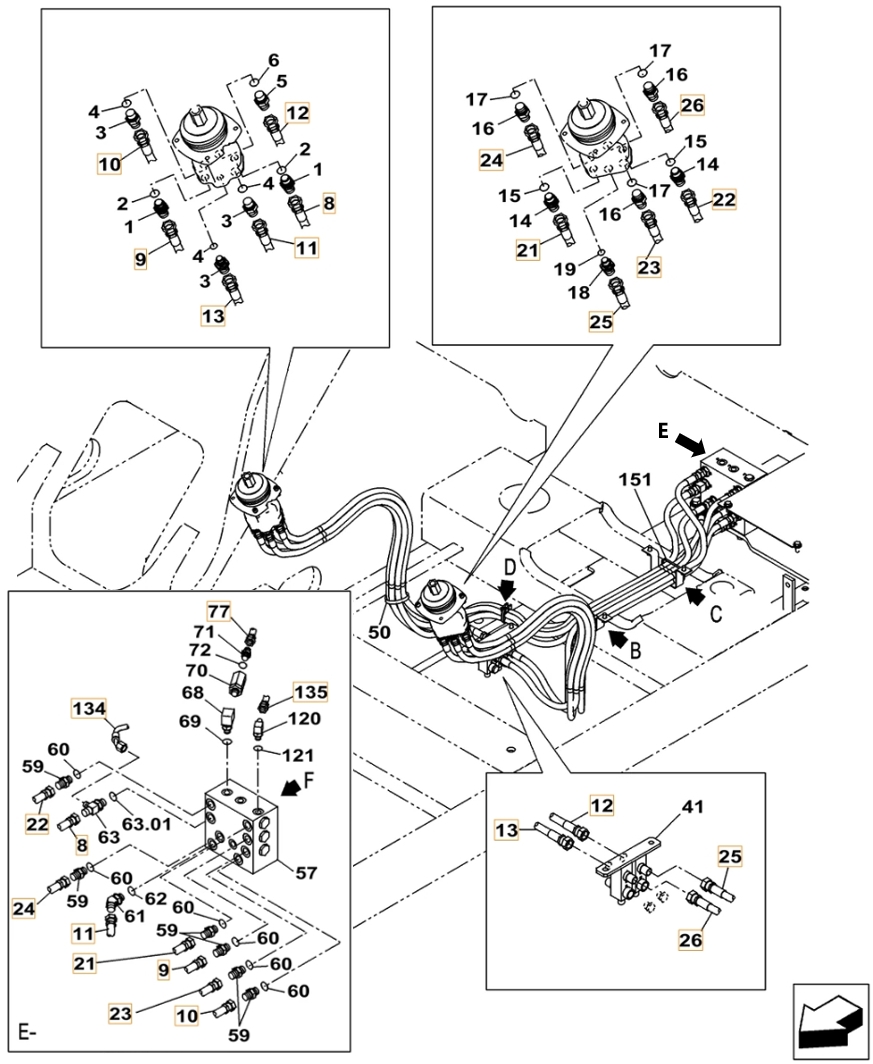

Case CX240C installation diagram showing hydraulic hose KRJ4381 at Pipe No. 21 — **Case CX240C**Part KRJ4381 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: KRJ4381
Diagram pipe number: 21
Installation route: 左手柄~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,800 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
