Individual hose record
4252854 Hose Repair Specifications
Excavator · Hitachi · ZX250F · Boom Assembly
Finished length900 mm
Locate this hose

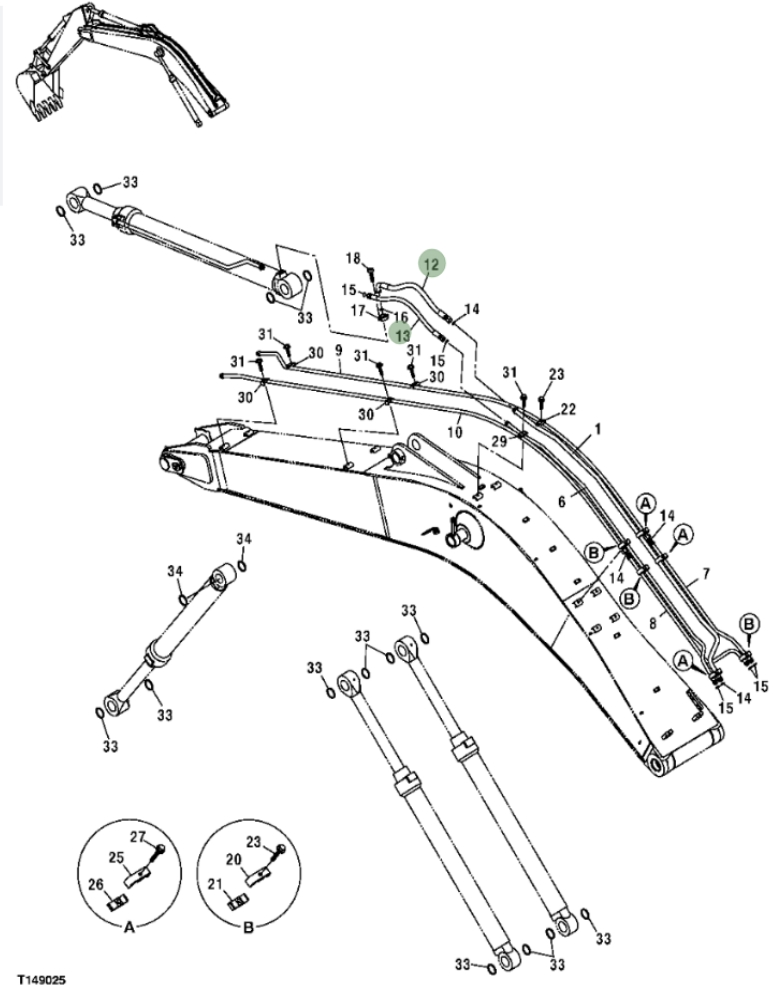

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4252854 before removing the hose.
Repair specifications
- Part number
- 4252854
- Diagram pipe number
- 13
- Installation route
- Arm cylinder — leftOriginal Chinese: 小臂油缸左
- Hose specification
- DN19;4SP-12;34.5Mpa
- Finished length
- 900 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
