- Length
- 430 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
4676504 Hose Repair Specifications
Excavator · Hitachi · EX1200-7 · Pedal
Finished length1,460 mm
Locate this hose

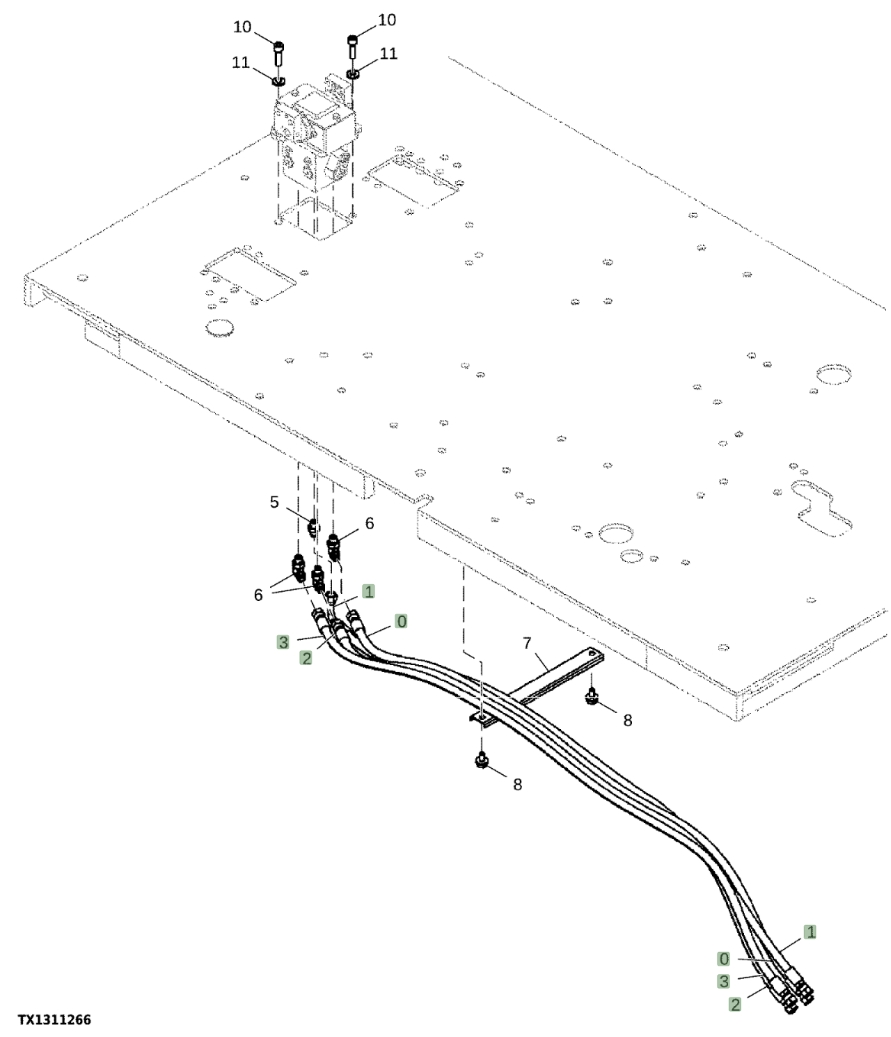

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4676504 before removing the hose.
Repair specifications
- Part number
- 4676504
- Diagram pipe number
- 0
- Installation route
- 行走踏板~接线板(踏板)
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 1,460 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 美制内螺纹74°内锥双六角
- Quantity
- 1
