Individual hose record
4368892 Hose Repair Specifications
Excavator · Hitachi · EX120-5 · Attachments
Finished length700 mm
Locate this hose

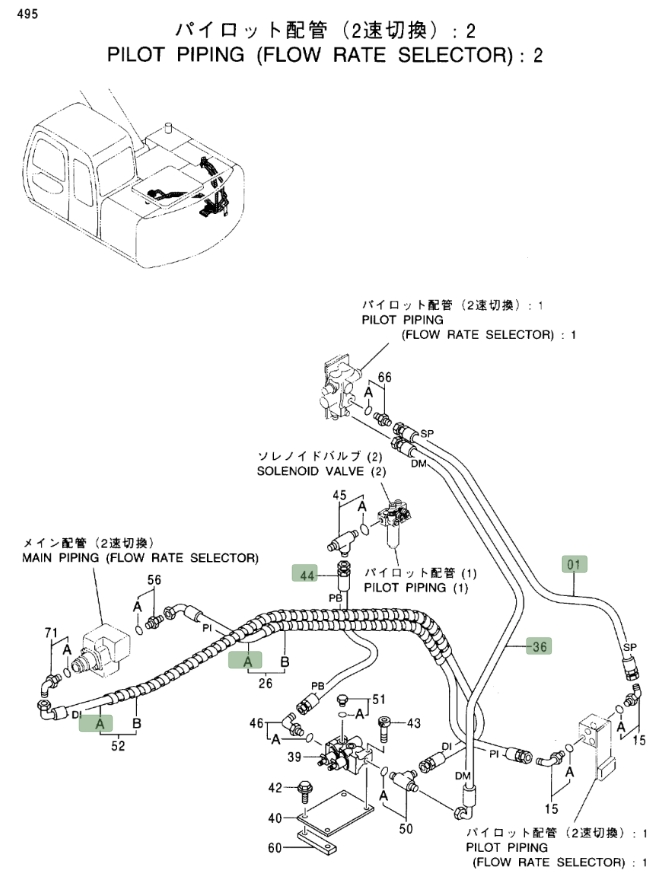

Installation diagram — Pipe No. 44
Locate Pipe No. 44 in the diagram, then confirm part number 4368892 before removing the hose.
Repair specifications
- Part number
- 4368892
- Diagram pipe number
- 44
- Installation route
- 电磁阀~电磁阀(流速切换)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 700 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
